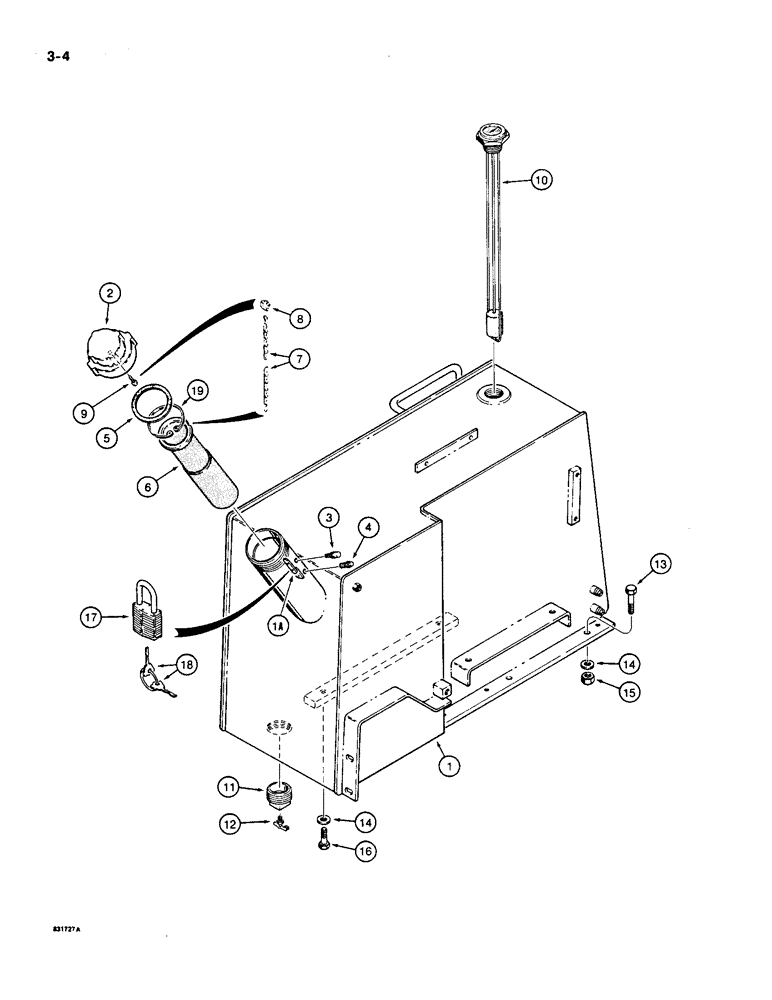

Запчасти Case 550 (3-04) - FUEL TANK (03) - FUEL SYSTEM

1

R50771

RESERVOIR

TANK ASSEMBLY - fuel, includes decals, Includes: Ref. 1A - 2

1шт.

1a

R46704

BRACKET

TAB - locking, fuel cap, weld on

1шт.

2

R46693

CAP

- fuel tank

1шт.

3

D33028

VALVE

- relief, fuel tank

1шт.

4

D33027

BREATHER

VALVE - air inlet, fuel tank

1шт.

5

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

- rubber, fuel cap

1шт.

6

R51771

STRAINER ASSY.

STRAINER - fuel

1шт.

7

R47786

CHAIN (CE)

CHAIN - fuel, Serial Range: cap-strainer

1шт.

8

R48634

FASTENER

SWIVEL - chain

1шт.

9

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- round head, No. 12 x 3/4 inch

1шт.

10

R28475

FUEL GAUGE

GAUGE - fuel tank

1шт.

11

R27578

PLUG

- drain

1шт.

12

217-81

VALVE

- 1/8 inch PT, drain, fuel tank

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

14

R24718

WASHER

- flat, hardened, 1/2 inch

5шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

17

D93753

PADLOCK

ASSEMBLY - fuel tank, includes keys, if used, Includes: Ref. 18

1шт.

18

R29555

KEY

- for Master padlock only

2шт.

18

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

19

D38743

SNAP RING,3.00", Int, #300

fuel strainer, chain 3.00", Int, #300

1шт.
