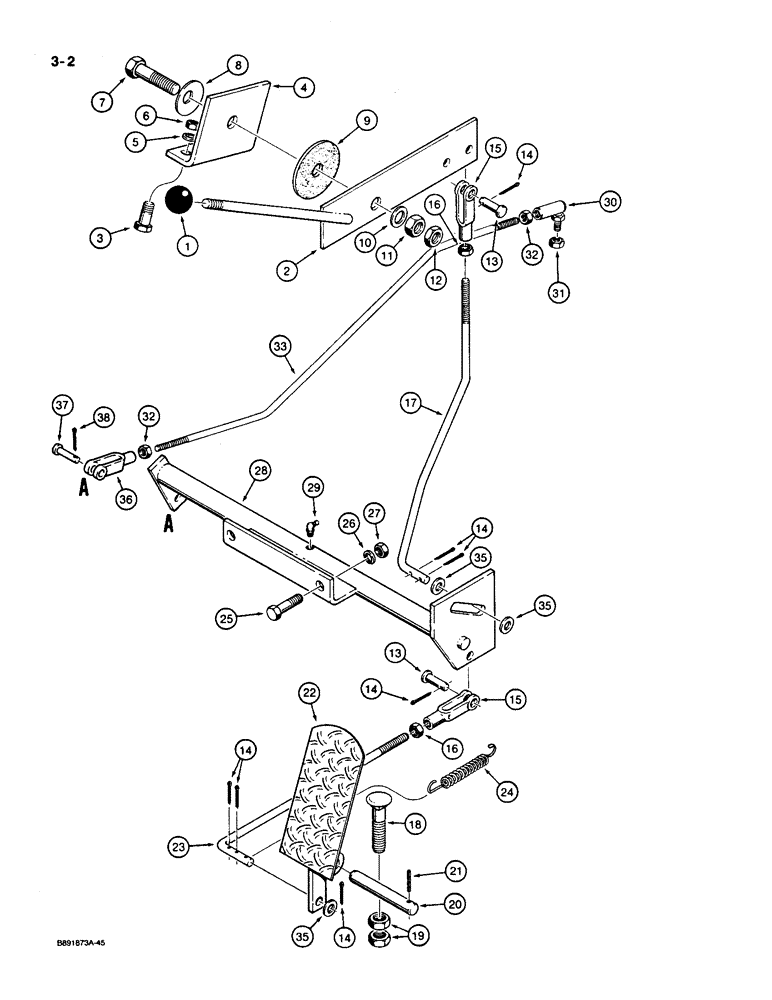

Запчасти Case 550 (3-02) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D49996

KNOB

- control lever

1шт.

2

R39829

LEVER

- control, hand throttle

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

4

R26944

SUPPORT

BRACKET - mounting

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

SPRING - Belleville, lever mounting

1шт.

9

D139323

FRICTION WASHER

DISC - friction

1шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

12

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

7шт.

15

H44198

YOKE

CLEVIS - adjustable, 5/16 inch NF

2шт.

16

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

17

R48113

ROD

- connecting

1шт.

18

111-530

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G2

BOLT - carriage, 1/2 NC x 2-1/2 inch

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

R17364

SHAFT

- pedal

1шт.

21

135-737

GROOVED PIN,5/32" x 1", Type E

PIN - roll, 5/32 x 1 inch

1шт.

22

D35403

PEDAL

- foot throttle

1шт.

23

R39832

ROD

- connecting

1шт.

24

R29849

SPRING

- pedal

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

R52634

BRACKET

SHAFT - cross

1шт.

29

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch long

1шт.

30

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, connecting rod

1шт.

31

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4 inch NF

1шт.

32

425-114

NUT,1/4"-28, G5

2шт.

33

R53774

STEM

ROD - connecting

1шт.

35

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

3шт.

36

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - connecting rod at cross shaft end

1шт.

37

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch diameter, at cross shaft

1шт.

38

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - hair, at cross shaft clevis pin

1шт.
