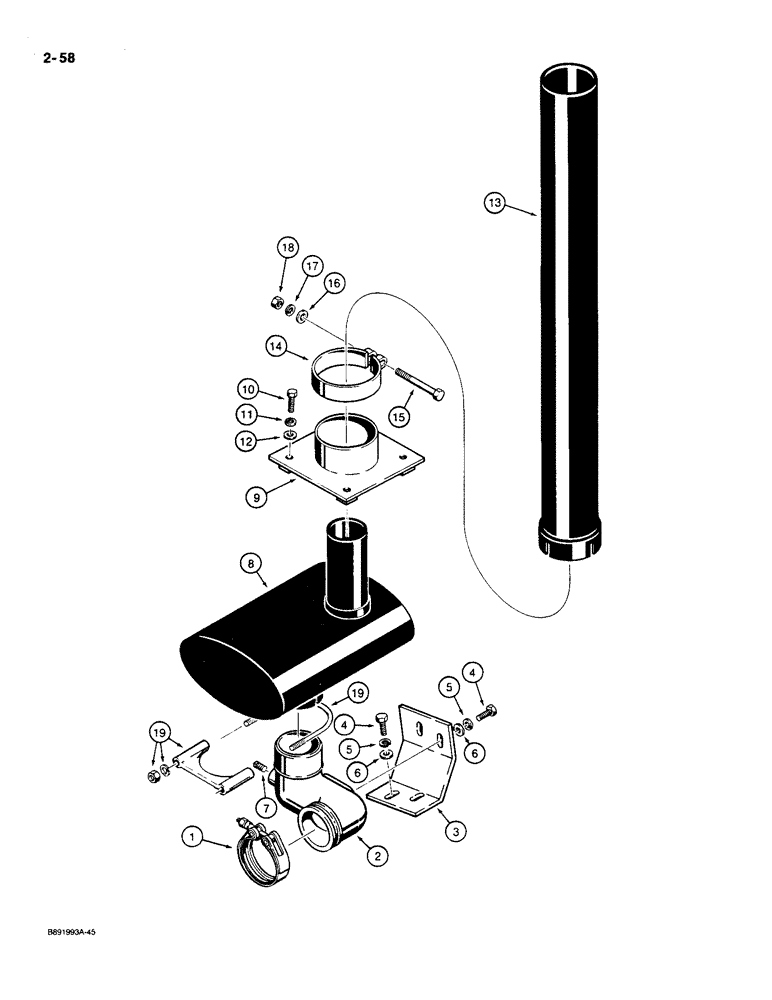

Запчасти Case 550 (2-58) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH A TURBOCHARGER (02) - ENGINE

1

A170467

CLAMP,72mm ID

- tube, at turbocharger

1шт.

2

A170987

ELBOW

TUBE - elbow, from turbocharger

1шт.

3

A172235

BRACKET

- tube support

1шт.

4

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

D41740

WASHER

- flat, 3/8 inch, hardened

4шт.

7

221-841

PLUG

- hex socket, 1/4 inch taper PT

1шт.

8

A189478

MUFFLER

- used on models with a turbocharger

1шт.

9

R42378

BRACKET

- exhaust pipe

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, hardened, 3/8 inch

4шт.

13

R50444

PIPE

- exhaust, muffler

1шт.

14

R42854

CLAMP

- exhaust pipe

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

19

L73711

CLAMP

- muffler

1шт.
