(2-56) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT A TURBOCHARGER

Запчасти Case 550 (2-56) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE

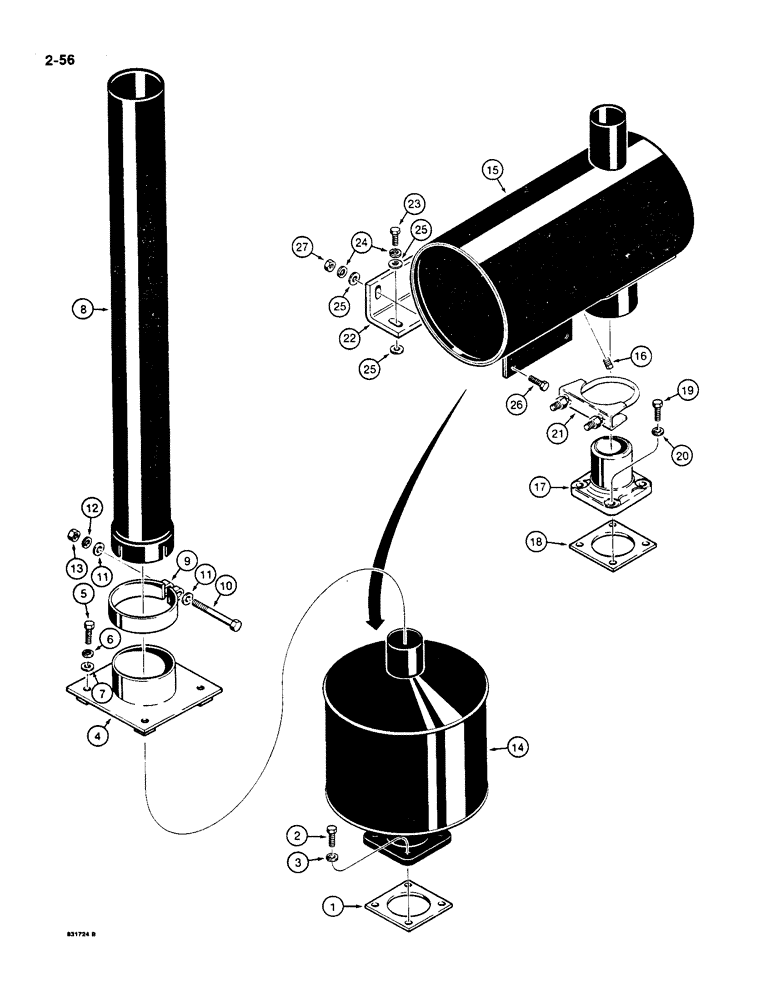

Схема запчастей Case 550 - (2-56) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE
5
25
15
16
17
19
11
4
3
22
25
8
27
24
18
7
25
23
20
12
14
10
6
11
9
26
1
13
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A170151

MANIFOLD GASKET

- muffler, exhaust manifold

1шт.

2

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

R42378

BRACKET

- exhaust pipe

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, hardened, 3/8 inch

4шт.

8

R50444

PIPE

EXHAUST PIPE - muffler

1шт.

9

R42854

CLAMP

- exhaust pipe

1шт.

10

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

11

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 3/8 inch

2шт.

12

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

14

A172785

MUFFLER

- standard, models without turbocharger, if used

1шт.

15

A172489

MUFFLER

- spark arrester, Includes: Ref. 16

1шт.

16

217-77

PLUG

- square head, 3/8 inch PT, brass, used on models with spark arrester muffler

1шт.

17

A170611

ADAPTER

- spark arrester muffler, used on models with spark arrester muffler

1шт.

18

A170151

MANIFOLD GASKET

- adapter, used on models with spark arrester muffler

1шт.

19

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Used on models with spark arrester muffler Hex, M10 x 25, 8.8, Full Thd

4шт.

20

892-11010

LOCK WASHER,M10

Used on models with spark arrester muffler M10

4шт.

21

A62874

CLAMP

- muffler to adapter, includes hardware, used on models with spard arrester

1шт.

22

A172480

SUPPORT

BRACKET - spark arrester muffler

1шт.

23

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Used on Models with Spark Arrester Muffler Hex, M10 x 30, 8.8

2шт.

24

892-11010

LOCK WASHER,M10

Used on models with spark arrester muffler M10

4шт.

25

D41740

WASHER

- flat, 3/8 inch, hardened, used on models with spark arrester muffler

6шт.

26

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Used on Models with Spark Arrester Muffler Hex, M10 x 30, 8.8

2шт.

27

825-1110

NUT,M10, Cl 8

hex, Used on models with spark arrester muffler M10, Cl 8

2шт.
