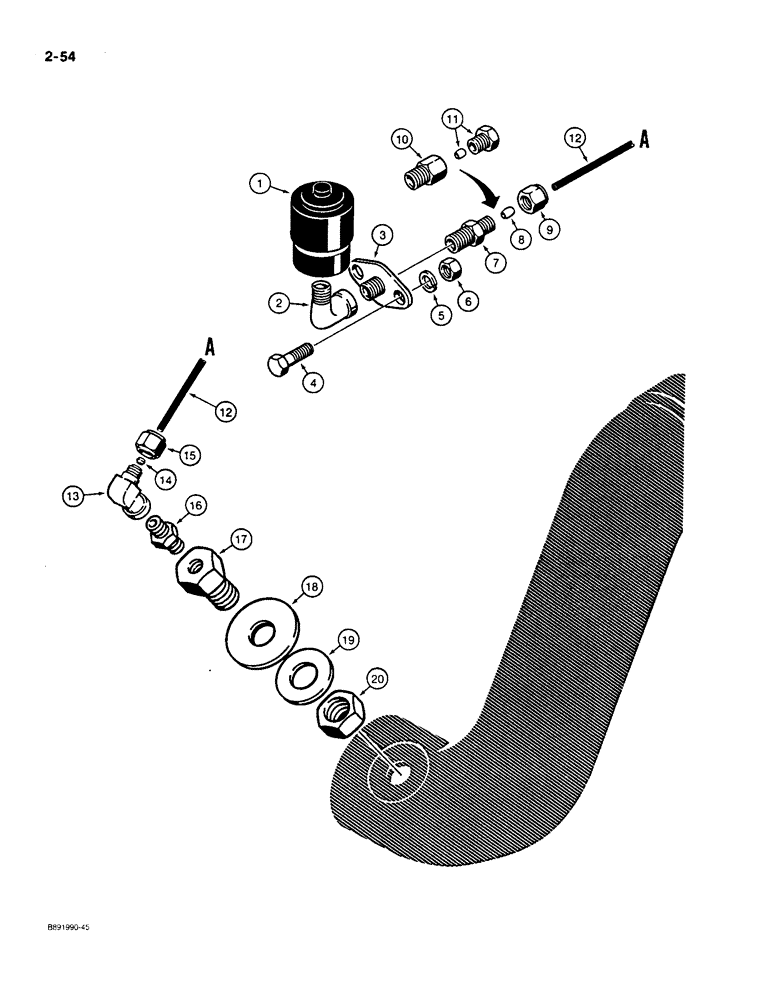

Запчасти Case 550 (2-54) - AIR RESTRICTION INDICATOR, MODELS WITH A TURBOCHARGER (02) - ENGINE

1

A59569

INDICATOR

- restriction, air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

D35816

CONNECTOR, ELEC

ADAPTER ASSEMBLY - compression, straight, production part, for service order 222-400 adapter assembly, see Refs. 10 and 11, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

D37176

SLEEVE

- adapter

1шт.

9

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, service replacement for D35816 adapter assembly, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

12

R52565

TUBE,0.125" OD x 29.5" L

- nylon, 29-1/2 inch (750 mm) long, cut from L60539 bulk, see below

1шт.

For restriction indicator parts used on models without a turbocharger see Figure 2-52.

1шт.

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

- 90 degree, compression, 1/8 tube OD x 1/8 inch fem PT, at air cleaner hose, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

14

222-4976

SLEEVE,1/8" Tube

- 1/8 inch tube OD

1шт.

15

222-4988

TUBE NUT,1/8" Tube

NUT - hex, 1/8 tube OD x 3/8-24 inch

1шт.

16

D36264

FITTING

ADAPTER - special, filter-type, 1/8 inch PT

1шт.

17

A170609

FITTING

ADAPTER - 1/8 inch PT x 3/4 inch NC

1шт.

18

S107793

SEALING WASHER

WASHER - 3/4 inch, special, with rubber seal

1шт.

19

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

20

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

L60539

TUBE,0.125" OD x 168" L

- 1/8 inch (3 mm) OD x 14 ft (427 cm) long

1шт.

For restriction indicator parts used on models without a turbocharger see Figure 2-52.

1шт.
