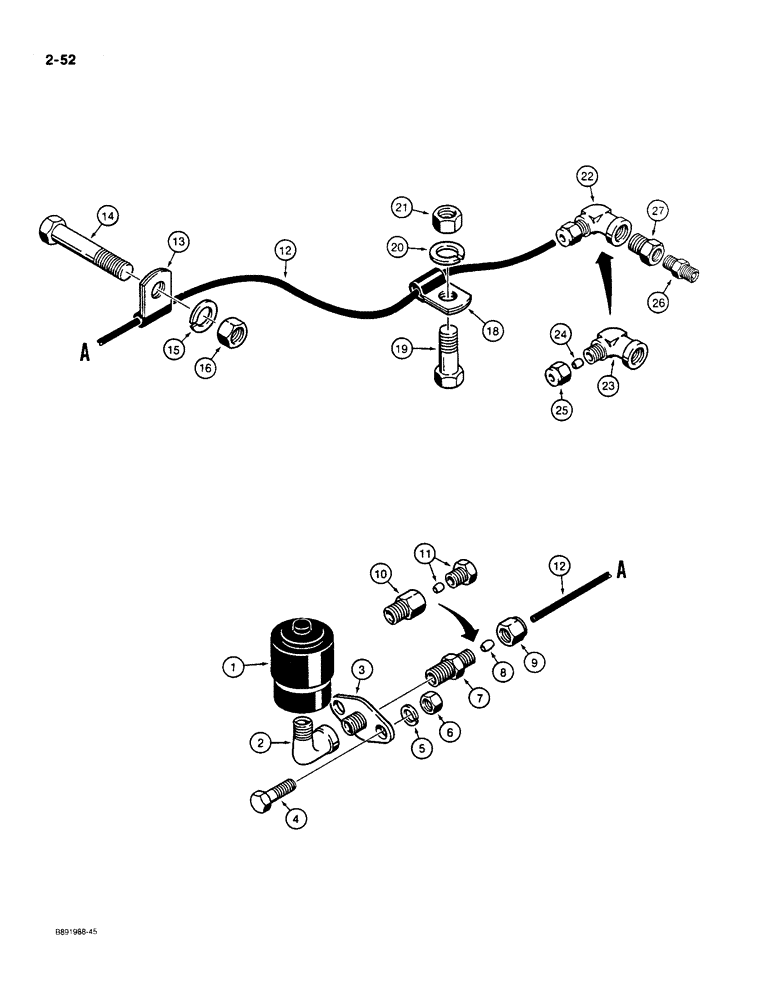

Запчасти Case 550 (2-52) - AIR RESTRICTION INDICATOR, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE

1

A59569

INDICATOR

- restriction, air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

D35816

CONNECTOR, ELEC

ADAPTER ASSEMBLY - compression, straight, production part, for service order 222-400 adapter assembly, see Refs. 10 and 11, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

D37176

SLEEVE

- adapter

1шт.

9

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, service replacement for D35816 adapter assembly (Refs. 7 - 9), Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

12

R52565

TUBE,0.125" OD x 29.5" L

- nylon, 29-1/2 inch (750 mm) long, cut from L60539 bulk see below

1шт.

For restriction indicator parts used on models with a turbocharger see Figure 2-54.

1шт.

13

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, at left-hand master brake cylinder

1шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, left-hand side of engine

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

- 90 degree, compression, 1/8 tube OD x 1/8 inch fem PT, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

24

222-4976

SLEEVE,1/8" Tube

- 1/8 inch tube OD

1шт.

25

222-4988

TUBE NUT,1/8" Tube

NUT - hex, 1/8 tube OD x 3/8-24 inch

1шт.

26

D36264

FITTING

ADAPTER - special, filter-type, 1/8 inch PT

1шт.

27

221-1087

REDUCER

- 1/2 x 1/8 inch taper PT

1шт.

L60539

TUBE,0.125" OD x 168" L

- 1/8 inch (3 mm) OD x 14 ft (427 cm) long

1шт.

For restriction indicator parts used on models with a turbocharger see Figure 2-54.

1шт.
