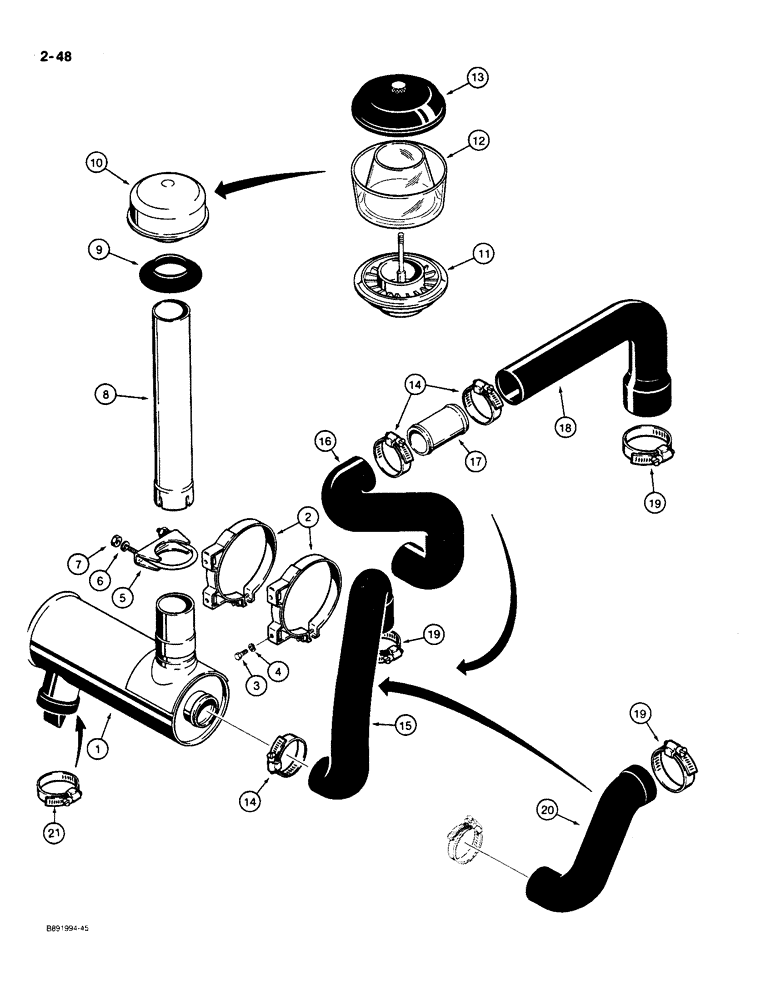

Запчасти Case 550 (2-48) - AIR CLEANER MOUNTING AND INTAKE PARTS (02) - ENGINE

1

A170974

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure 2-50

1шт.

2

R47469

CLAMP

- air cleaner mounting

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

L73711

CLAMP

ASSEMBLY - air cleaner pipe, Includes: Ref. 6 and 7

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

A170512

TUBE

PIPE - air cleaner inlet

1шт.

9

D93451

GROMMET

- hood, air cleaner inlet pipe

1шт.

10

A61277

CAP

- air cleaner inlet, if used

1шт.

A24391

AIR CLEANER

PRECLEANER ASSEMBLY - if used, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

12

73186

HOUSING

BOWL - precleaner

1шт.

13

73187

COVER

- precleaner

1шт.

14

214-178

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

CLAMP - adjustable, air cleaner hose

1-2шт.

15

R49013

INTAKE AIR HOSE,63.50 mm ID, 76.20 mm ID x 556.00 mm, SAE J200

- Air cleaner to intake manifold, Used on models without a turbocharger with a standard muffler, if used 63.50 mm ID, 76.20 mm ID x 556.00 mm, SAE J200

1шт.

16

R56616

INTAKE AIR HOSE,63.50 mm ID x 290.00 mm, SAE J200

- At air cleaner, Used on models without a turbocharger with a spark arresting muffler, if used 63.50 mm ID x 290.00 mm, SAE J200

1шт.

17

R56615

TUBE,63.5 mm OD x 115 mm L

- intermediate, if used

1шт.

18

R56614

INTAKE AIR HOSE,63.50 mm ID, 76.20 mm ID x 401.00 mm, SAE J200

AIR INTAKE HOSE - At intake manifold, Used on models without a turbocharger with a spark arresting muffler, if used 63.50 mm ID, 76.20 mm ID x 401.00 mm, SAE J200

1шт.

19

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - hose, at intake manifold

1шт.

20

R49014

PIPE

HOSE - air cleaner to turbocharger, used on models with a turbocharger, if used

1шт.

21

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adjustable, air cleaner dust cap

1шт.
