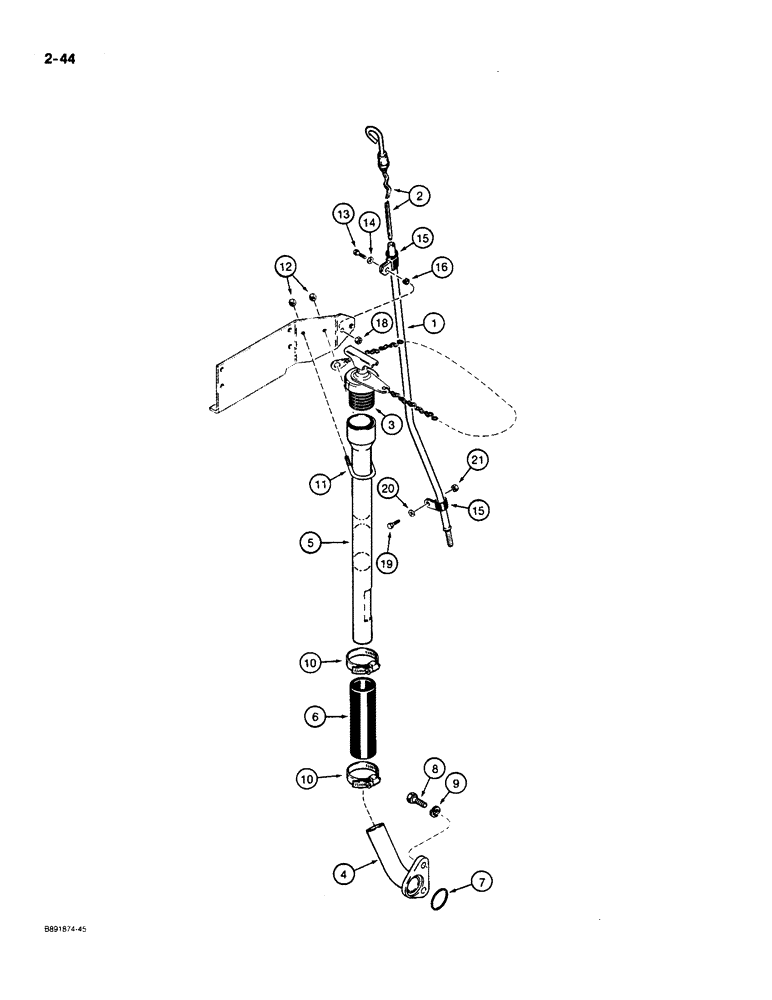

Запчасти Case 550 (2-44) - ENGINE DIPSTICK AND FILL TUBE (02) - ENGINE

1

R47970

TUBE,9.52 mm OD x 760, 173 mm L

- dipstick

1шт.

2

R48402

DIPSTICK

- engine oil

1шт.

3

L115504

CAP

- filler tube, includes chain

1шт.

4

R53750

TUBE,24 mm L

- engine oil fill, lower

1шт.

5

R53769

TUBE,38.1 mm OD x 540, 40 mm L

- engine oil, fill, upper

1шт.

6

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Engine Oil Fill 38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

7

J906704

O-RING

- fill tube

1шт.

8

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

2шт.

9

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

10

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, engine oil fill 1.25/2.125 HD Worm

2шт.

11

L73167

U-BOLT

- upper engine oil fill tube to coolant recovery bottle bracket

1шт.

12

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

49852

PTO SHAFT

- dipstick tube

2шт.

16

R39516

GROMMET

- rubber, vibration dampener, used with upper dipstick tube clamp only

1шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

20

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

21

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

1шт.
