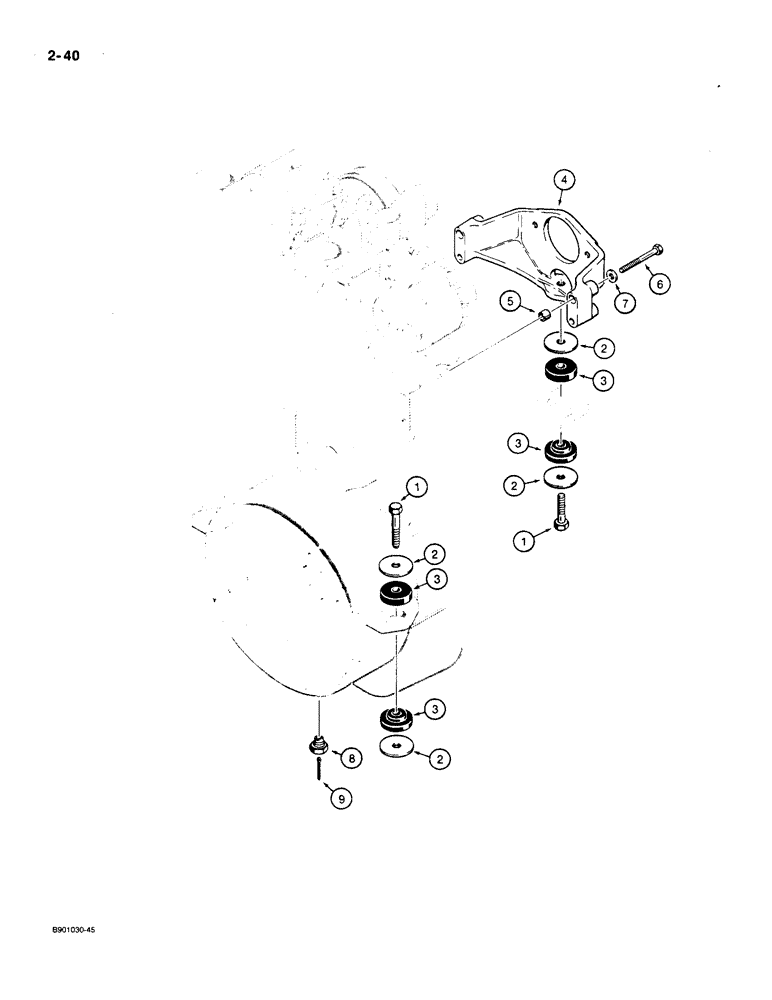

Запчасти Case 550 (2-40) - ENGINE MOUNTING (02) - ENGINE

1

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch, use with Loctite 242

3шт.

2

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, 5/8 inch, special

6шт.

3

R49482

RUBBER MOUNTING

INSULATOR - rubber

6шт.

4

A170580

SUPPORT

- engine, front

1шт.

5

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

BUSHING - engine support

2шт.

6

A171690

BOLT

BOLT - special, 12 - 1.75 x 85 mm

4шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2 inch, hardened

4шт.

8

L113178

PLUG

BUSHING - pipe

1шт.

9

32-1416

COTTER PIN,7/32" x 1"

PIN - cotter, 1/16 x 1 inch

1шт.
