Запчасти Case 550 (2-32) - FLYWHEEL AND HOUSING, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

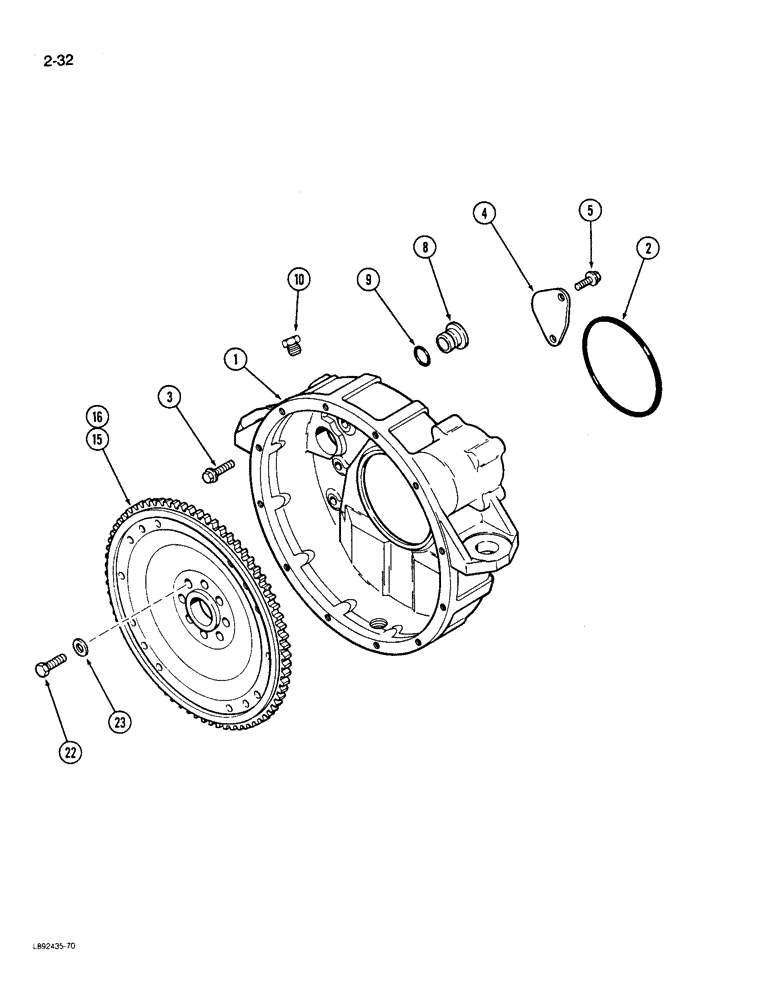

Схема запчастей Case 550 - (2-32) - FLYWHEEL AND HOUSING, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE
22
15
4
3
2
1
8
16
9
5
10
23

Артикул

Название

Примечание

Количество

1

J903287

CASE

HOUSING - flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 40 mm

8шт.

4

J908095

PLATE

- cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, flange, self tapping, 8 mm - 1.25 x 21mm

2шт.

8

J910248

PLUG

- housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Plug, flywheel housing -212, 70 Duro, .859" ID x .139" Thk

1шт.

10

353-225

PLUG,Sltd Hd, 3/4"-16

- hex head, 3/4 inch NF

1шт.

15

J910283

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 16

1шт.

16

J901774

GEAR,Flywheel

GEAR - flywheel (159 tooth)

1шт.

22

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm - 1.25 x 32 mm

8шт.

23

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

Выбрано товаров: 12
