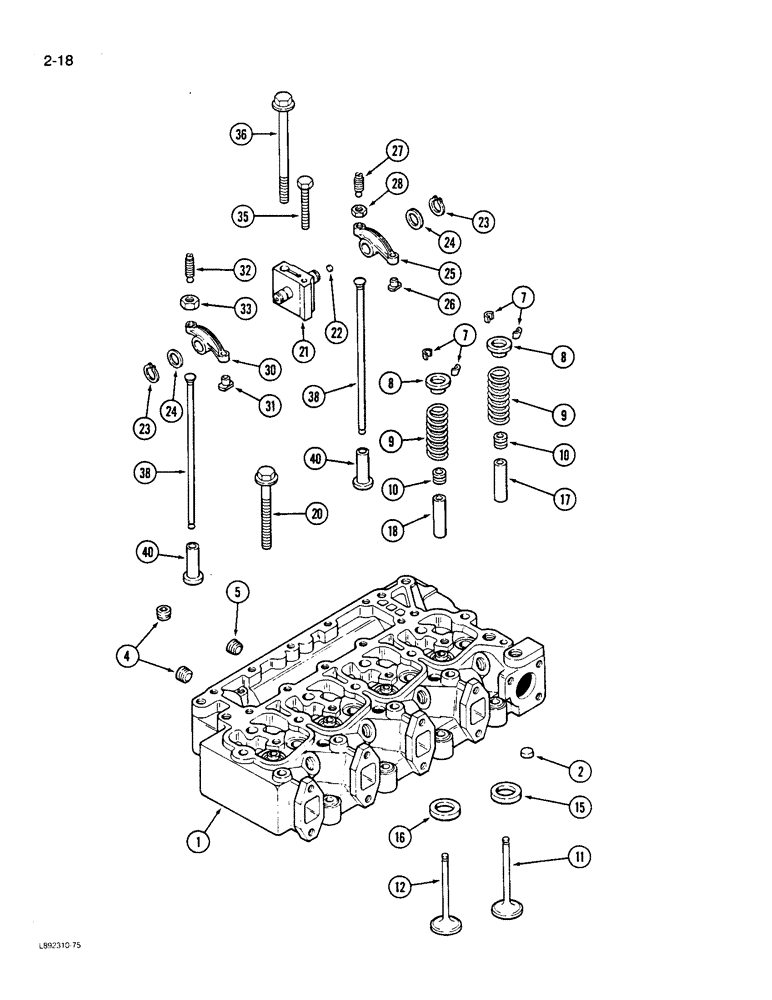

Запчасти Case 550 (2-18) - CYLINDER HEAD AND VALVE MECHANISM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

JR910275

HEAD (CYLINDER)

HEAD - cylinder, remanufactured (North America only)

1шт.

JC910275

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head core for credit

1шт.

1

J910275

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new (With valves), Includes: Ref. 1 - 12

1шт.

1

J913389

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Without valves), Includes: Ref. 2

1шт.

2

J902606

PLUG

- expansion (21 mm) OD

3шт.

4

A77429

PLUG

- hex socket pipe, 1/4-18 PT

5шт.

5

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

7

CASJ900250

RETAINER

KEEPER - valve

16шт.

8

J900299

RETAINER

- valve spring

8шт.

9

J900276

VALVE SPRING

SPRING - valve

8шт.

10

J901097

SEAL

- valve

8шт.

11

J901117

VALVE

- intake

4шт.

12

J901607

VALVE

- exhaust

4шт.

J280911 Wear Pads for Ref #11 and #12

1шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

4шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

4шт.

17

J904408

GUIDE

- valve, intake 14 mm OD (Service repair only)

4шт.

18

J904409

GUIDE

- valve, exhaust 14 mm OD (Service repair only)

4шт.

J906206

GUIDE

- valve, intake and exhaust 11 mm OD (Service repair only)

8шт.

20

J903938

BOLT

- hex flange head, 12 mm - 1.75 x 70 mm

4шт.

20

J903939

BOLT

- hex flange head, 12 mm - 1.75 x 120 mm

10шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, Includes: Ref. 22

4шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

24

J900245

WASHER

- thrust, rocker arm

8шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex jam, 3/8 inch NF (Replaces A77558)

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 31 - 33

4шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- hex jam, 3/8 inch NF (Replaces A77558)

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, 8 mm - 1.25 x 75 mm

4шт.

36

J903940

BOLT

- hex flange head, 12 mm - 1.75 x 180 mm

4шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

8шт.

40

J907240

TAPPET

- valve, push rod

8шт.
