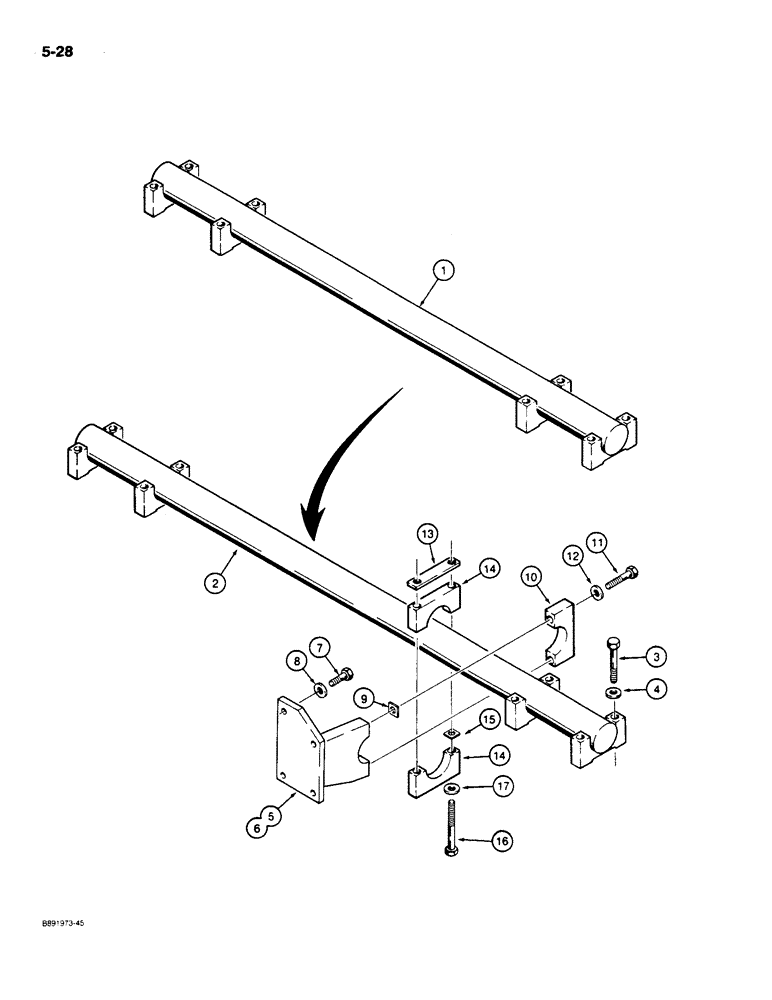

Запчасти Case 550 (5-28) - REAR PIVOT SHAFT (11) - TRACKS/STEERING

1

R46898

SHAFT

- pivot, 53 inch gauge long track models

1шт.

2

R53785

SHAFT

- pivot, 64 inch gauge LGP models

1шт.

3

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

- hex, 3/4 NC x 4 inch, grade 8

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4 inch

8шт.

5

R46896

SUPPORT

BRACKET - pivot shaft to final drive housing, right-hand

1шт.

6

R46897

SUPPORT

BRACKET - pivot shaft to final drive housing, left-hand, not shown

1шт.

7

113-2709

LOCK BOLT,Locking, 3/8"-10 x 2 1/2", G8

BOLT - hex, 3/4 NC x 2-1/2 inch, grade 8, use with Loctite

8шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, 3/4 inch

8шт.

9

R28516

SPACER

- clamp, upper

2шт.

10

D34663

CLAMP

- front, pivot shaft

2шт.

11

113-833

BOLT,Locking, 7/8" - 9 x 4", Gr 5

Use with Loctite 242 Locking, 7/8"-9 x 4", G5

4шт.

12

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- flat, hardened, 7/8 inch

4шт.

13

D34722

BLOCK

- tapped, clamp, top

2шт.

14

D34663

CLAMP

- pivot shaft to engine frame

4шт.

15

R28516

SPACER

- clamp, front

2шт.

16

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex, 7/8 NC x 7-1/2 inch

4шт.

17

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- flat, hardened, 7/8 inch

4шт.
