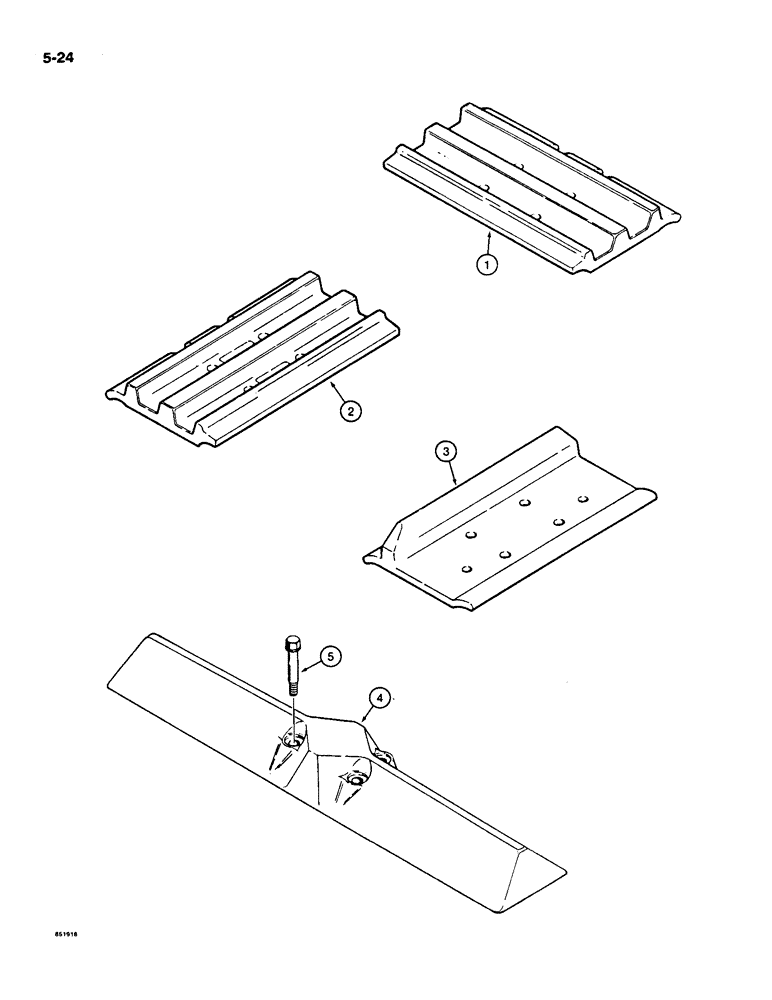

Запчасти Case 550 (5-24) - TRACK SHOES, PRIOR TO P.I.N. JAK0013968 FOR 1/2 INCH MOUNTING BOLTS (11) - TRACKS/STEERING

1

R24588

TRACK SHOE

SHOE - track, 12 inch (305 mm), triple grouser - closed

78шт.

1

R24590

TRACK SHOE

SHOE - track, 14 inch (356 mm), triple grouser - closed

78шт.

1

R24591

TRACK SHOE

SHOE - track, 16 inch (406 mm), triple grouser - closed

78шт.

1

R24592

TRACK SHOE

SHOE - track, 18 inch (457 mm), triple grouser - closed

78шт.

1

R24593

SHOE

- track, 20 inch (508 mm), triple grouser - closed

78шт.

2

R24725

TRACK SHOE

SHOE - track, 12 inch (305 mm), triple grouser - open center

78шт.

2

R24726

TRACK SHOE

SHOE - track, 14 inch (356 mm), triple grouser - open center

78шт.

2

R24727

TRACK SHOE

SHOE - track, 16 inch (406 mm), triple grouser - open center

78шт.

3

R32892

PLATE

SHOE - track, 14 inch (356 mm), single grouser - closed

78шт.

3

R24601

TRACK SHOE

SHOE - track, 16 inch (406 mm), single grouser - closed

78шт.

3

R32894

TRACK SHOE

SHOE - track, 18 inch (457 mm), single grouser - closed

78шт.

3

R32895

TRACK SHOE

SHOE - track, 20 inch (508 mm), single grouser - closed

78шт.

3

R41281

TRACK SHOE

SHOE - track, 28 inch (711 mm), LGP models only, single grouser - closed

78шт.

4

R49918

TRACK SHOE

SHOE - track, self-cleaning, 28 inch (711 mm), LGP models only

78шт.

5

R43189

BOLT

- hex, special, 1/2 - 20 NF x 3 inch, self-cleaning grouser

312шт.

3

R57417

PLATE

SHOE - track, 16 inch (406 mm), for 9/16 inch mounting bolts, Start Serial: JAK0013968

74шт.

3

R57418

TRACK SHOE

SHOE - track, 28 inch (711 mm), for 9/16 inch mounting bolts, Start Serial: JAK0013968

74шт.
