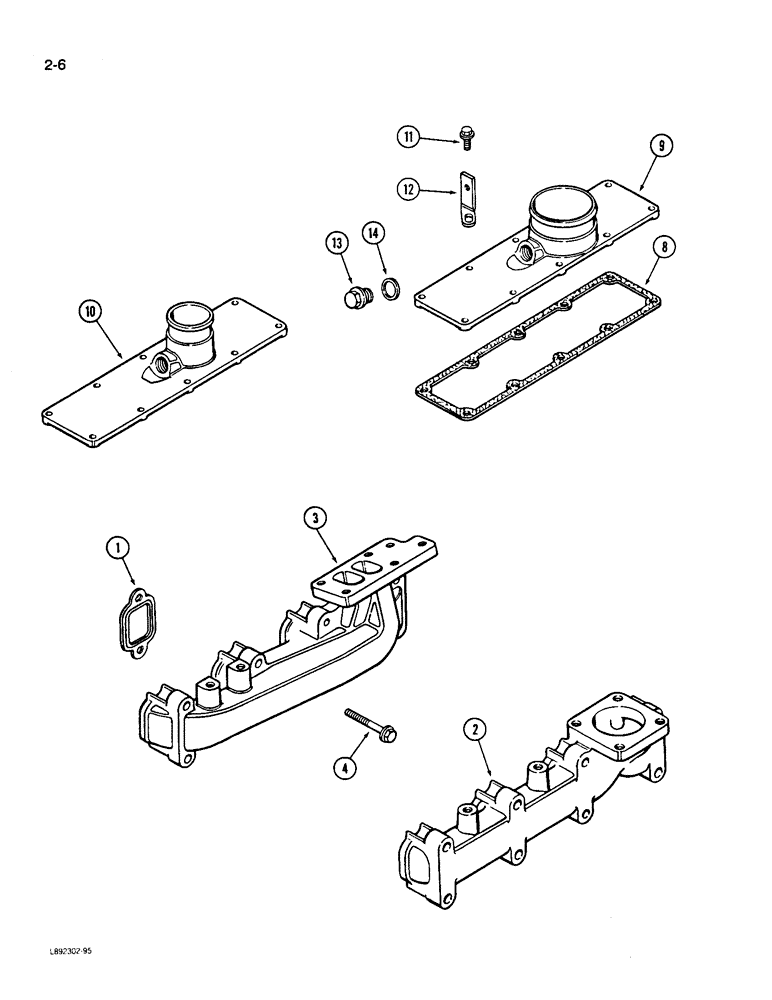

Запчасти Case 550 (2-06) - MANIFOLDS, EXHAUST, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901223

MANIFOLD

- exhaust (Natural Aspirated)

1шт.

3

J901919

MANIFOLD

- exhaust (Turbocharged)

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm, 10.9

8шт.

8

J914028

GASKET

- intake manifold

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Natural Aspirated) (Order A77415 kit)

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Turbocharged) (Order A77416 kit)

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold (Replaces J904341) Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (See Figure 3-8), intake

1шт.

13

J907185

PLUG

ASSEMBLY - manifold, intake

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

A77415

COVER

KIT - intake manifold (Natural aspirated) (Includes: Ref. 9, 13 and 14)

1шт.

A77416

COVER

KIT - intake manifold (Turbocharged) (Includes: Ref. 10, 13 and 14)

1шт.
