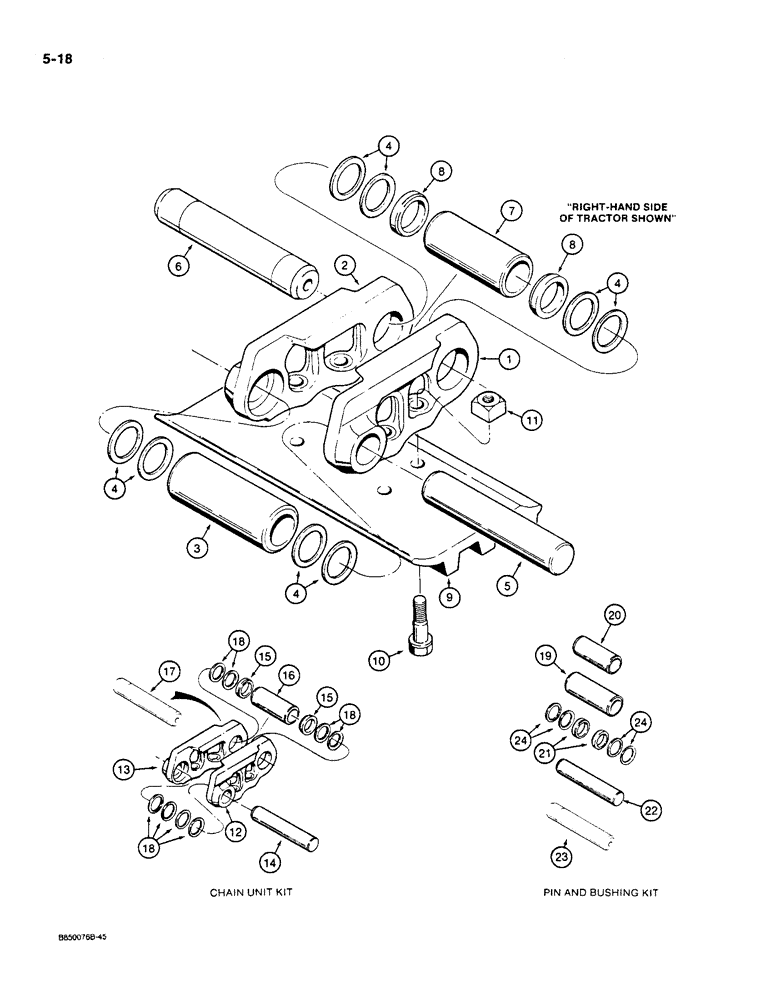

Запчасти Case 550 (5-18) - SEALED TRACK CHAIN, IF USED, P.I.N. JAK0013968 AND AFTER (11) - TRACKS/STEERING

R57371

CHAIN (CE)

CHAIN ASSEMBLY - 37 unit, 53 inch gauge long track models, Includes: Ref. 1 - 8

2шт.

1

R57404

CHAIN LINK

LINK, CHAIN, Track, RH

37шт.

2

R57403

CHAIN LINK

LINK, CHAIN, Track, LH

37шт.

3

R57378

BUSHING

-standard pin, 4-3/4 inch long

36шт.

4

R52291

SEAL

SPRING - Belleville, bushing

148шт.

5

R57367

PIN

- standard, 1-1/8 inch (29 mm) diameter

36шт.

6

R57366

PIN,28.24mm OD x 167mm L

- master, order oversized R57412 pin, Ref. 23 below

1шт.

7

R57379

BUSHING

- master pin, 4 inch long

1шт.

8

R57411

SPACER

- master bushing

2шт.

9

REF

INSTRUCTION

SHOE - track, see Figures 5-24 and 5-26 for options

74шт.

10

R57374

BOLT

BOLT - special, 9/16 inch NF

296шт.

11

R57375

SQUARE NUT

- square, special, 9/16 inch NF

296шт.

R57414

CHAIN (AG)

KIT - chain unit, includes instruction sheet, (includes standard and master track pins), Includes: Ref. 12 - 18

1шт.

12

R57404

CHAIN LINK

LINK, CHAIN, Track, RH, Unit kit (Incl. standard and master track pins)

1шт.

13

R57403

CHAIN LINK

LINK, CHAIN, Track, LH, Unit Kit (Incl. standard and master track pins)

1шт.

14

R57367

PIN

- track, standard, chain unit kit (includes standard and master track pins)

2шт.

15

R57411

SPACER

- bushing, used with master pin, chain unit kit (includes standard and master track pins)

2шт.

16

R57379

BUSHING

- master pin, 4 inch long, chain unit kit (includes standard and master track pins)

1шт.

17

R57366

PIN,28.24mm OD x 167mm L

- master, order oversized R57412 pin, ref. 23 below, chain unit kit (includes standard and master track pins)

1шт.

18

R52291

SEAL

SPRING - Belleville, bushing, chain unit kit (includes standard and master track pins)

8шт.

R57413

PIN

KIT - pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 19 - 24

1шт.

19

R57378

BUSHING

- standard pin, 4-3/4 inch long, and pin kit

72шт.

20

R57379

BUSHING

- master pin, 4 inch long, and pin kit

2шт.

21

R57411

SPACER

- master bushing and pin kit

4шт.

22

R57367

PIN

- standard, and bushing kit

72шт.

23

R57412

PIN

- Master, 0.08 inch oversized, and bushing kit

2шт.

24

R52291

SEAL

SPRING - Belleville, bushing and pin kit

296шт.
