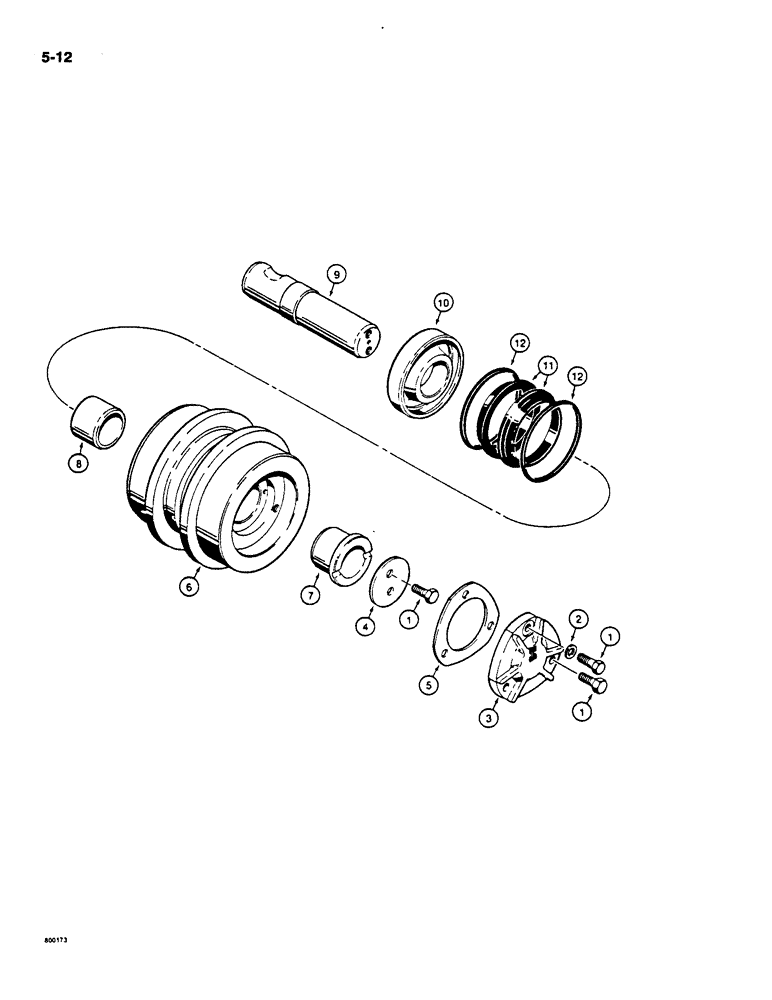

Запчасти Case 550 (5-12) - TRACK CARRIER ROLLER ASSEMBLY (11) - TRACKS/STEERING

R33965

ROLLER

ASSEMBLY - carrier, track, Includes: Ref. 1 - 12

2шт.

1

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER

1шт.

3

R33959

CYLINDER END CAP

COVER - end carrier roller

1шт.

4

R33960

PLATE

- shaft retaining

1шт.

5

R33964

GASKET

- end cover

1шт.

R33967

CARRIER

HUB ASSEMBLY - carrier roller, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - carrier roller

1шт.

7

R33951

BUSHING

- carrier roller, with flange

1шт.

8

R33958

BUSHING

- carrier roller, without flange

1шт.

R33969

SHAFT

ASSEMBLY - carrier roller, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - carrier roller

1шт.

10

R33962

RETAINER

- face seal

1шт.

R33607

SEAL

- face, carrier roller, Includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

- face seal

2шт.
