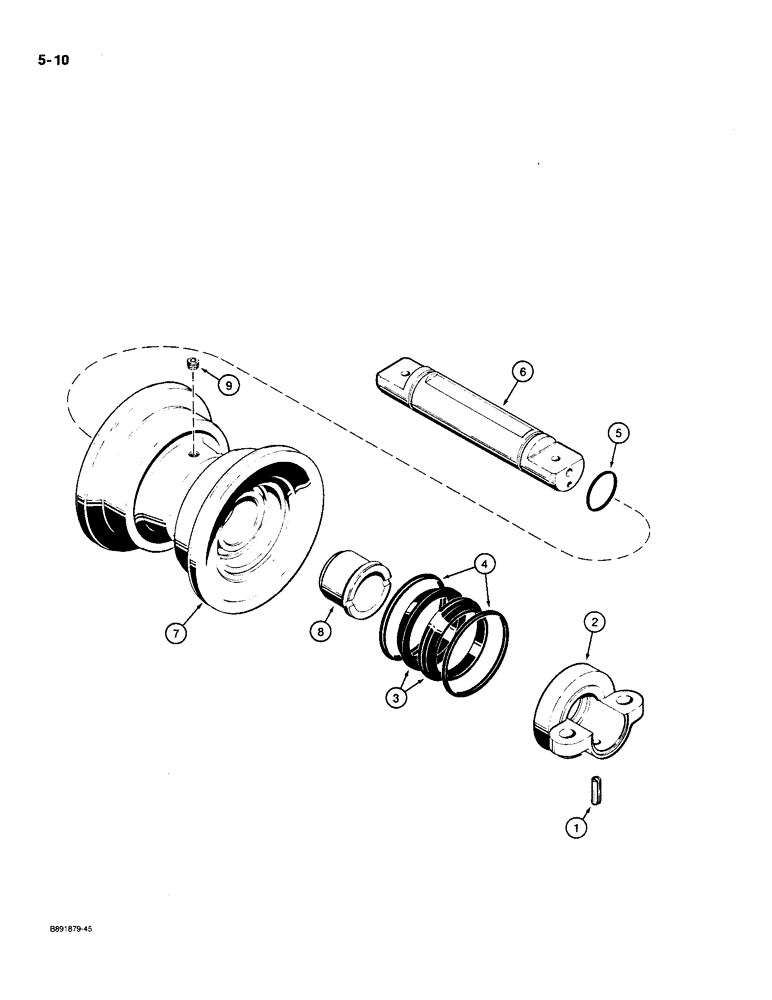

Запчасти Case 550 (5-10) - TRACK ROLLER ASSEMBLY (11) - TRACKS/STEERING

R33565

ROLLER

ASSEMBLY - track, no longer used, order R57357, Includes: Ref. 1 - 9

12шт.

R57357

TRACK ROLLER

ROLLER ASSEMBLY - track, Includes: Ref. 1 - 9

12шт.

1

R33570

PIN

- bracket retaining

2шт.

2

R33568

BRACKET

- track roller mounting

2шт.

R33564

SEAL

- face, track roller, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

4

N6846

O-RING,75.7mm ID x 9.5mm Width

- face seal

2шт.

5

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft

2шт.

6

R33569

SHAFT

- roller

1шт.

R33567

ROLLER

HUB ASSEMBLY - R33565 track roller, Includes: Ref. 7 - 9

1шт.

R57360

ROLLER ASSY.

HUB ASSEMBLY - R57357 track roller

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - track roller

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- hub

2шт.

9

R33557

PLUG

- R33567 hub only

1шт.
