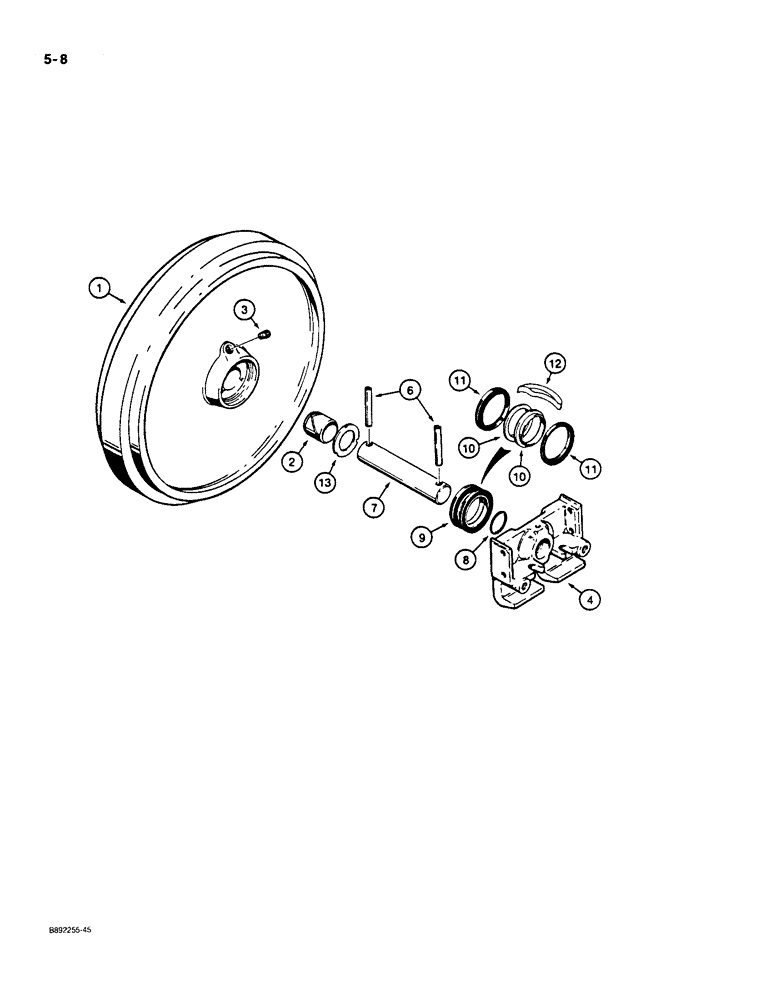

Запчасти Case 550 (5-08) - IDLER ASSEMBLY (11) - TRACKS/STEERING

R52404

STEERING IDLER

IDLER ASSEMBLY - track, Includes: Ref. 1 - 13

2шт.

R50452

BUSHING

HUB ASSEMBLY - with bushing, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HUB - idler

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split

2шт.

3

221-841

PLUG

- hex socket, 1/4 inch taper PT

1шт.

4

R52402

BRACKET

- mounting

2шт.

6

R50570

GROOVED PIN,1/2" x 3 1/2", Type A, Hardened

Pin, Grooved, , shaft retaining 1/2" x 3 1/2", Type A, Hardened

2шт.

7

R46697

SHAFT

- idler

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- shaft

2шт.

9

R39273

SEAL

- face, idler, Includes: Ref. 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

RING - seal retaining

2шт.

D36826

SEAL KIT

KIT - repair, Inlcudes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

13

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust, idler

2шт.
