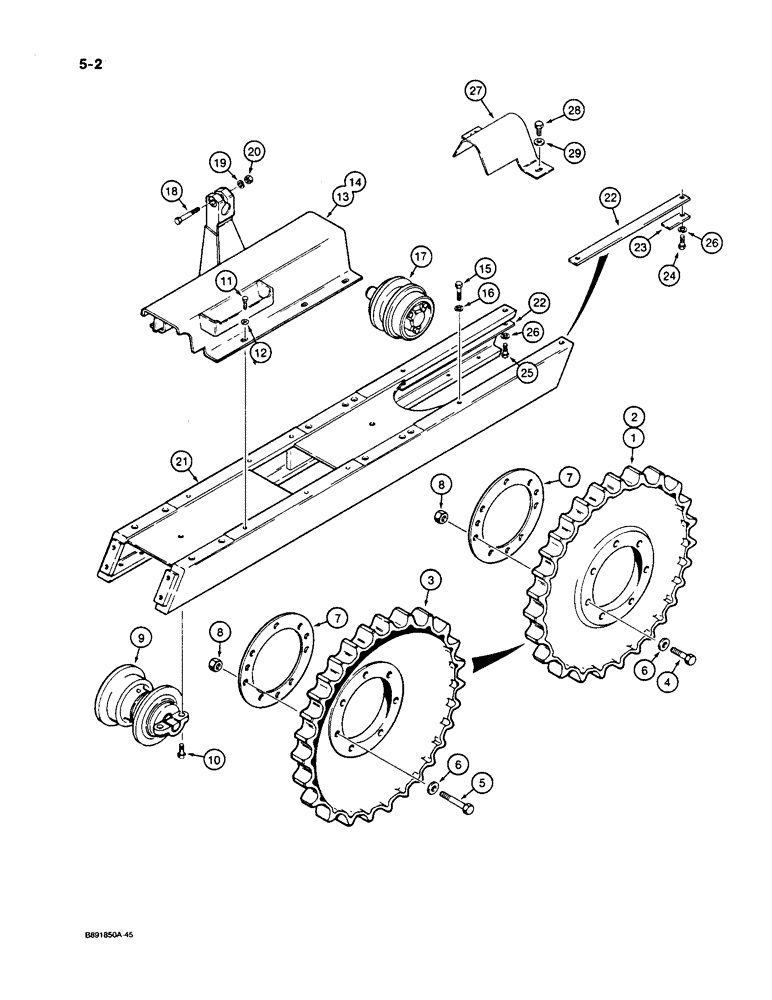

Запчасти Case 550 (5-02) - TRACK FRAME, SPROCKET, ROLLER, AND RECOIL HOUSING (11) - TRACKS/STEERING

1

R52698

DRIVE SPROCKET

SPROCKET - 53 inch gauge long track models only, Serial Range: -JAK0013968

2шт.

1

R57298

DRIVE SPROCKET

SPROCKET - 53 inch gauge long track models only, Start Serial: JAK0013968

2шт.

2

R56390

DRIVE SPROCKET

SPROCKET - relieved, if used, Serial Range: -JAK0013968

2шт.

2

R57392

DRIVE SPROCKET

SPROCKET - relieved, if used, Start Serial: JAK0013968

2шт.

3

R52699

DRIVE SPROCKET

SPROCKET - 64 inch gauge LGP dozer models only, Serial Range: -JAK0013968

2шт.

3

R57281

DRIVE SPROCKET

SPROCKET - 64 inch gauge LGP dozer models only, Start Serial: JAK0013968

2шт.

4

R27954

BOLT

- special, 3/4 NC x 2-3/4 inch

14шт.

5

R39270

BOLT

- special, 3/4 NC x 3-1/4 inch

14шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

14шт.

7

R46160

SHIM,.032" Thk

Sprocket .032" Thk

1шт.

8

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

14шт.

9

REF

INSTRUCTION

ROLLER ASSEMBLY - track, for correct assembly and components, see Figure 5-10

12шт.

10

113-2629

LOCK BOLT,Locking, 5/8"-11 x 1 1/2", G5, Full Thd

BOLT - hex, 5/8 NC x 1-1/2 inch, use with Loctite 242

48шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

10шт.

12

R24323

WASHER

- flat, special

10шт.

13

R56487

HOUSING

- recoil, with carrier roller bracket, right-hand

1шт.

14

R56486

HOUSING

- recoil, with carrier roller bracket, left-hand

1шт.

15

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

R33965

ROLLER

ASSEMBLY - carrier, parts list Figure 5-12

2шт.

18

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21

R54428

FRAME

- track, Serial Range: -JAK0013968

2шт.

21

R57454

FRAME ASSY

FRAME - track, Start Serial: JAK0013968

2шт.

22

D35276

PLATE

- wear, track frame

4шт.

23

R54430

LARGE PLATE

PLATE - idler stop, outer side of track frame only, if used

2шт.

24

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Models with R54430 plate Ref. 23 Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

25

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Models without R54430 plate Ref. 23 Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2-4шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

27

R57631

GUARD

- track adjuster, if used

2шт.

28

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

If used Hex, 1/2"-13 x 1", G8, Full Thd

4шт.

29

R24323

WASHER

- flat, special, if used

4шт.
