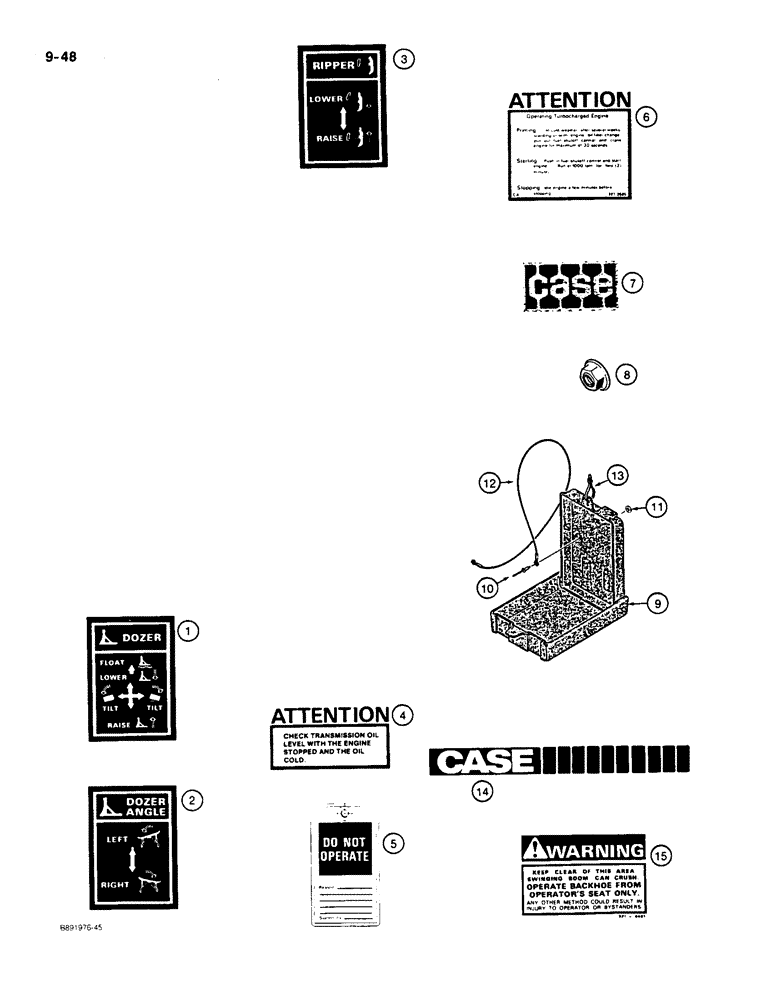

Запчасти Case 550 (9-48) - DECALS AND OPERATORS MANUAL BOX (09) - CHASSIS/ATTACHMENTS

R57039

KIT

- decals, also includes Refs. on Figure 9-46, Includes: Ref. 1 - 6

1шт.

1

321-4181

DECAL

- dozer control pattern, lift and tilt

1шт.

2

321-4182

DECAL

- dozer control pattern, angle

1шт.

3

321-4185

DECAL

- ripper control pattern

1шт.

4

R50495

DECAL

- Attention, Check the Transmission Oil Level

1шт.

5

321-4614

TAG

- Do Not Operate

1шт.

6

R50422

DECAL

- Attention, Operating Turbocharged Engine

1шт.

7

321-4739

EMBLEM

- Case, metallic, on grille

1шт.

8

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4 inch, used with Ref. 7 metallic emblem

2шт.

9

R46464

CASE

BOX - operators manual

1шт.

10

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 inch

3шт.

11

195-511

WASHER,#10

- flat, 13/64 x 15/32 x 3/16 inch

3шт.

12

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

R48490

DECAL

- Case, with ten tread marks to the right, used on the rear cover on models with a backhoe

1шт.

15

321-4481

DECAL

- Warning, Keep Clear of this Area, used on models with a backhoe

2шт.
