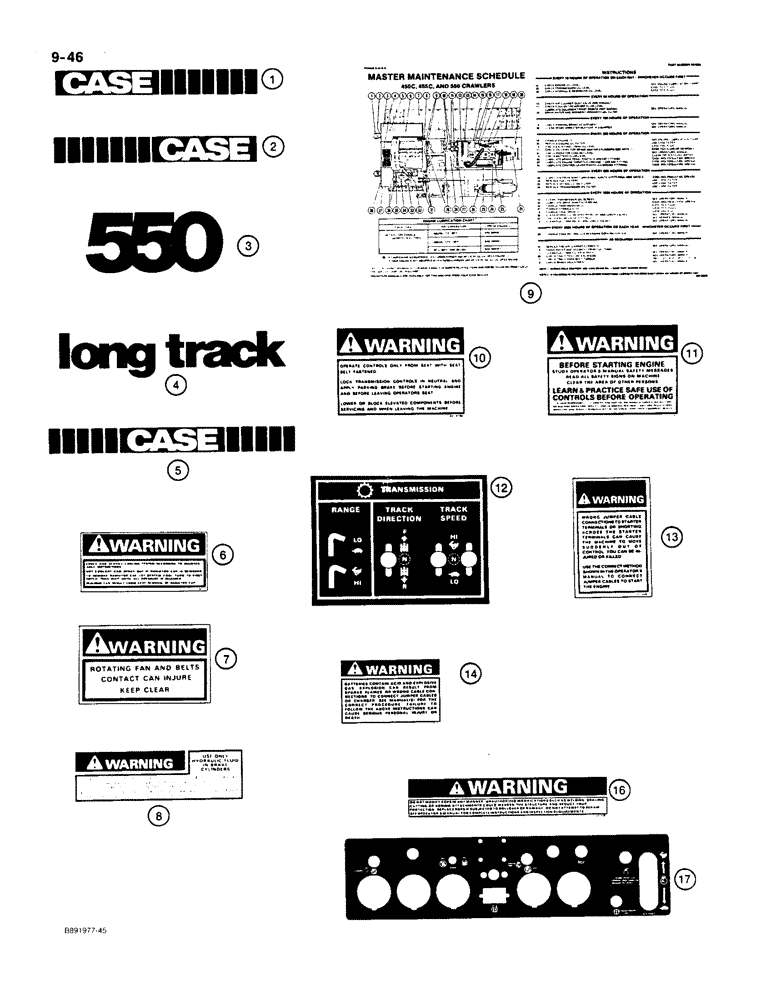

Запчасти Case 550 (9-46) - DECALS (09) - CHASSIS/ATTACHMENTS

R57039

KIT

- decals, also includes Refs. on Figure 9-48, Includes: Ref. 1 - 17

1шт.

1

R48483

DECAL

- Case, with seven treads to the right

1шт.

2

R48484

DECAL

- Case, with seven treads to the left

1шт.

3

R57024

DECAL

- 550

2шт.

4

R56135

DECAL

- long track

2шт.

5

R48618

DECAL

- Case, with five treads on both sides, used on rear cover

1шт.

6

321-6672

DECAL

- Warning, check and service cooling system

1шт.

7

321-3596

DECAL

- Warning, rotating fan and belts

3шт.

8

321-6957

DECAL

- Warning, use only hydraulic fluid in brake cylinders

1шт.

9

R57025

DECAL

- Master Maintenance Schedule

1шт.

10

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

11

321-3705

DECAL

- Warning, before starting engine

1шт.

12

R49555

DECAL

- Transmission, Range, Track Direction, Track Speed

1шт.

13

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals, located on plate below starter

1шт.

14

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

2шт.

16

321-4192

DECAL

- Warning, do not modify ROPS

1шт.

17

R57297

DECAL

- instrument panel

1шт.

18

321-7030

WARNING DECAL

"Do Not Jump"

1шт.
