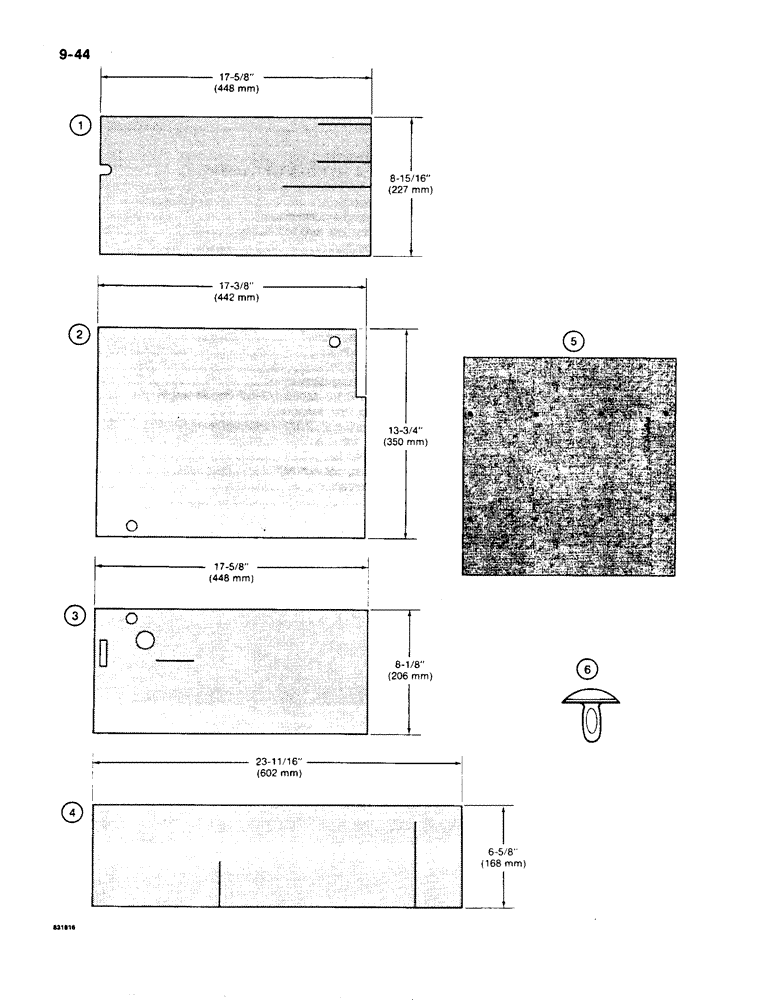

Запчасти Case 550 (9-44) - NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PAD - hydraulic reservoir frame, front, cut from R30870

1шт.

2

REF

INSTRUCTION

PAD - floor plate, left-hand, cut from R30870

1шт.

3

REF

INSTRUCTION

PAD - floor plate, right-hand, cut from R30870

1шт.

4

REF

INSTRUCTION

PAD - behind instrument panel, cut from R30870

1шт.

5

R48301

NOISE PROTECTION

HEADLINER - ROPS canopy roof, vinyl covered

1шт.

6

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - ROPS canopy headliner

8шт.

R30870

PAD

- bulk, 54 (1372 mm) x 72 (1829 mm) x 1 inch (25 mm)

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
