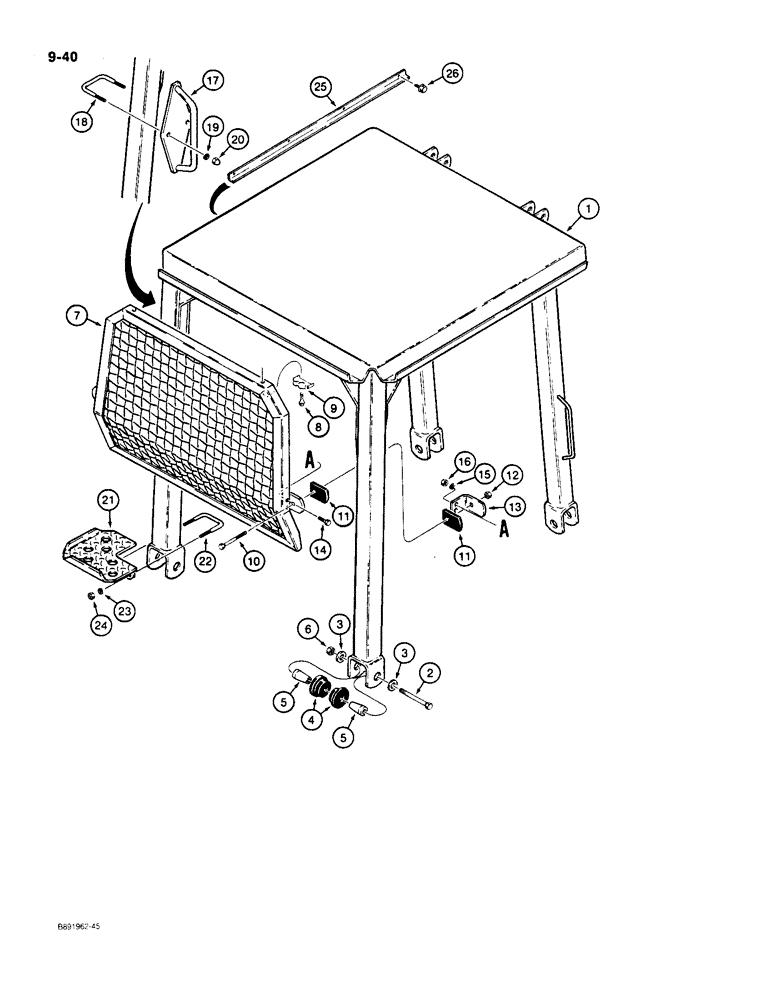

Запчасти Case 550 (9-40) - ROLL OVER PROTECTIVE STRUCTURE, CANOPY (09) - CHASSIS/ATTACHMENTS

1

R57035

ROPS

CANOPY - ROPS, order from Machinery Price List

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4 inch, hardened

8шт.

4

F44212

MOUNTING PARTS

INSULATOR - rubber, ROPS mounting

8шт.

5

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert

8шт.

6

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

R48279

GUARD

SCREEN - rear, not used on models with a backhoe

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

9

R38226

LOCK WASHER

RETAINER - screen, upper

2шт.

10

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

11

R40074

CUSHION ASSY.

INSULATOR - rubber, screen mounting

4шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

13

R40921

CLAMP

- rear screen

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

R43969

HANDLE

- grab, used on models with a backhoe

2шт.

18

R43970

BOLT

U-BOLT - grab handle, 3/8 inch NC

2шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

129-520

NUT,Crown, 3/8"-16

- dome, 3/8 inch NC

4шт.

21

R43973

LARGE PLATE

STEP - used on models with a backhoe

1шт.

22

R43971

BOLT

U-BOLT - step, 1/2 inch NC

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

R40753

BRACKET

- headliner retaining, left-hand side, for headliner see Figure 9-44

1шт.

26

187-1080

SCREW,Hex Wash Hd, 1/4" x 1/2"

- self-tapping, hex washer head, 1/4 NC x 1/2 inch

4шт.
