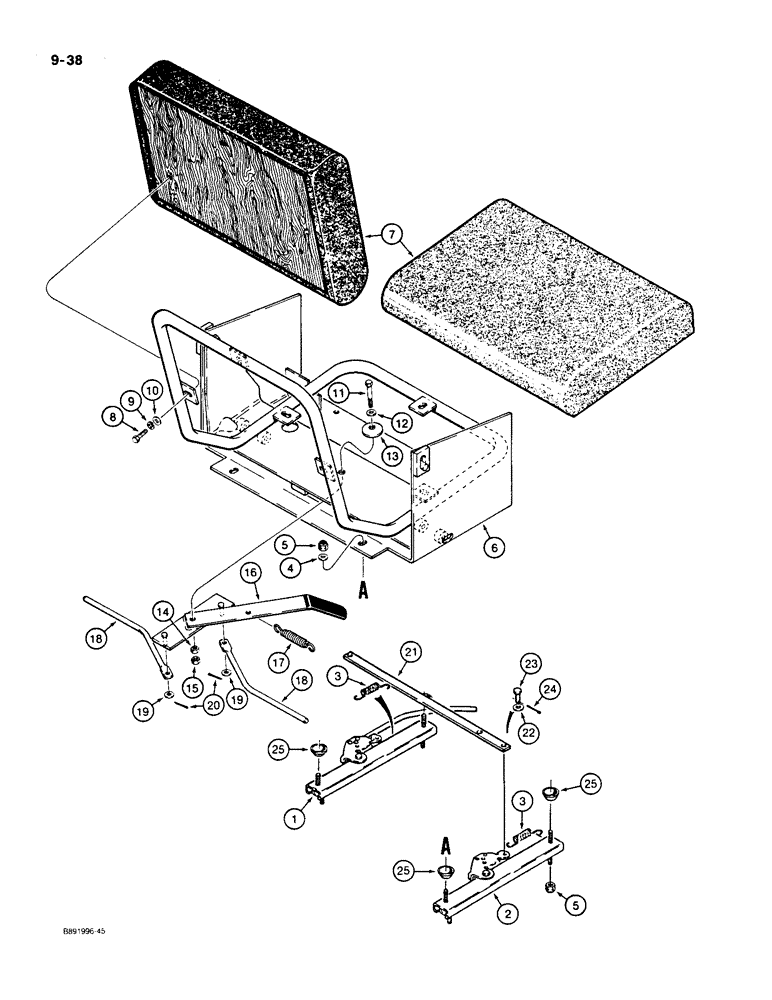

Запчасти Case 550 (9-38) - SEAT USED ON MODELS WITH A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

R53178

ADJUSTER

ASSEMBLY - seat, left-hand, Includes: Ref. 3

1шт.

2

R52275

ADJUSTER

ASSEMBLY - seat, right-hand, Includes: Ref. 3

1шт.

3

L35503

SPRING

- seat adjuster, both seat adjusters

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

4шт.

5

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

6

R48524

FRAME

- seat

1шт.

7

R48744

CUSHION ASSY.

CUSHION - seat

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

6шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

D41740

WASHER

- flat, 3/8 inch, hardened

1шт.

13

R14771

WASHER

SPRING - Belleville, seat handle mounting

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8 inch NC

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

R48525

HANDLE

- seat release

1шт.

17

R29849

SPRING

- seat release

1шт.

18

R48530

ROD

- seat release

2шт.

19

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

20

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

21

R53224

BAR

- cross, seat adjusters

1шт.

22

195-101

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch

2шт.

23

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 inch

2шт.

24

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

25

A45111

SPACER

- cupped, seat adjuster mounting

4шт.
