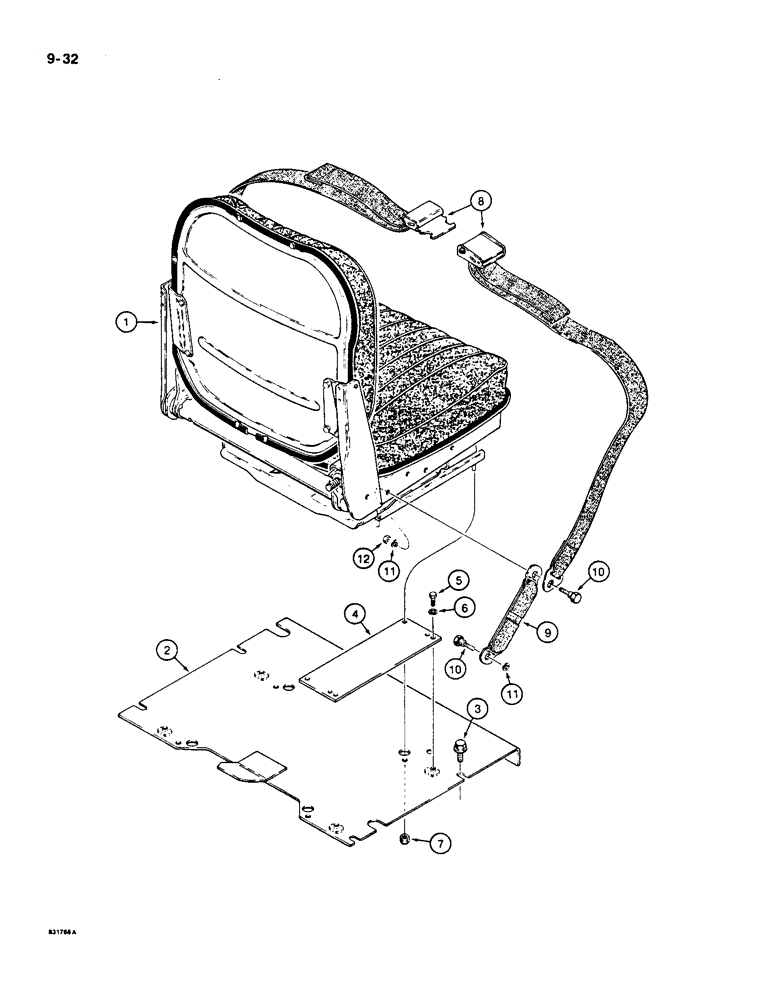

Запчасти Case 550 (9-32) - SUSPENSION SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

R49353

SEAT

ASSEMBLY - suspension, parts list Figures 9-34 and 9-36

1шт.

2

R53225

LARGE PLATE

PLATE - seat mounting

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

4

R50967

LARGE PLATE

PLATE - suspension seat mounting

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

8

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

8

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.

9

R45816

SAFETY BELT ,1.80" W

Extension 1.80" W

2шт.

10

R45855

BOLT

BOLT - shoulder, special, 7/16 NF x 1-1/2 inch

4шт.

11

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

12

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.
