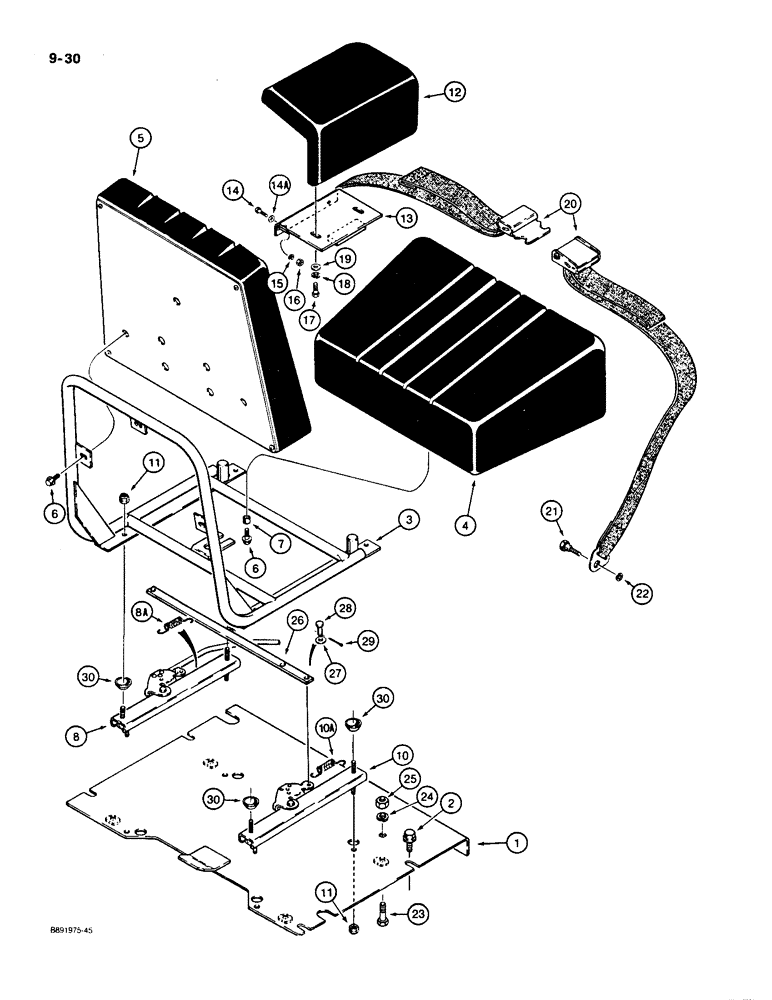

Запчасти Case 550 (9-30) - STANDARD SEAT, ARMRESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

R53225

LARGE PLATE

PLATE - seat mounting

1шт.

2

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

3

R48433

SEAT

FRAME - seat

1шт.

4

R48423

CUSHION

- seat

1шт.

5

R48424

CUSHION

BACKREST - seat

1шт.

6

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

4шт.

7

D35217

BUSHING

SPACER - seat cushion mounting

1шт.

8

R53178

ADJUSTER

ASSEMBLY - seat, left-hand, Includes: Ref. 8A

1шт.

8a

L35503

SPRING

- seat adjuster

1шт.

10

R52275

ADJUSTER

ASSEMBLY - seat, right-hand, Includes: Ref. 10A

1шт.

10a

L35503

SPRING

- seat adjuster

1шт.

11

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

12

R48420

ARMREST

- cushion

2шт.

13

R34710

SUPPORT

PLATE - hinged, armrest mounting

2шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

14a

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

17

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

20

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

20

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.

21

R45855

BOLT

BOLT - shoulder, special, 7/16 NF x 1-1/2 inch

2шт.

22

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

23

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

R53224

BAR

- cross, seat adjusters

1шт.

27

495-21025

WASHER

- flat, 1/4 x 9/16 x 3/64 inch, hardened

2шт.

28

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 inch

2шт.

29

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

30

A45111

SPACER

- cupped, seat adjuster mounting

4шт.
