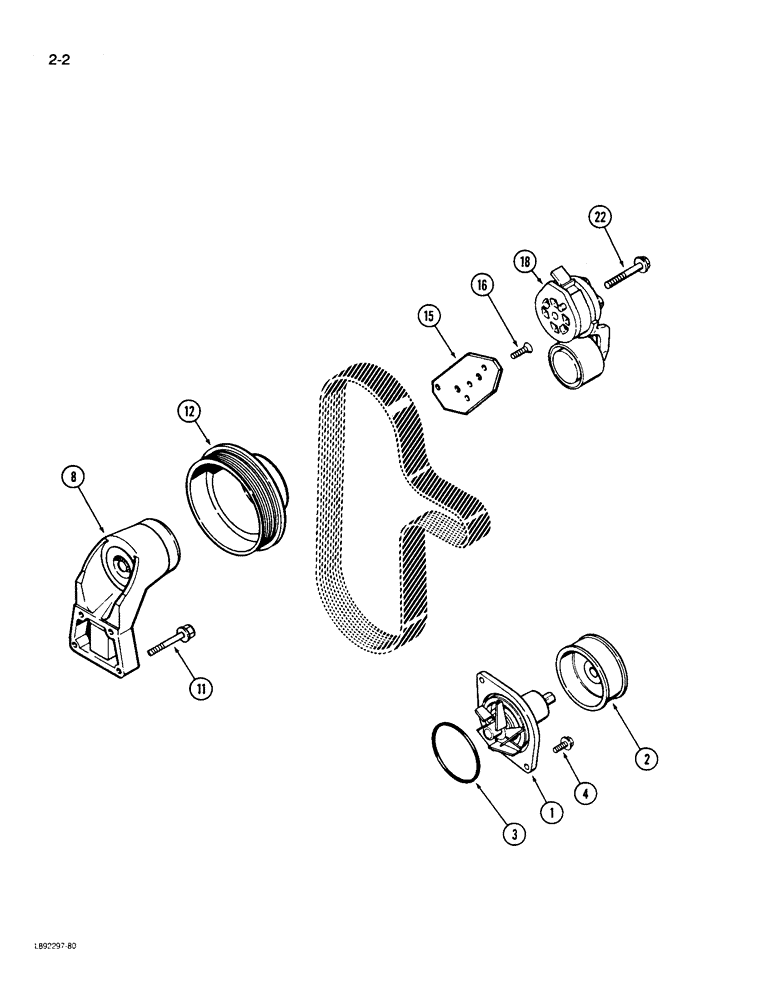

Запчасти Case 550 (2-02) - WATER PUMP SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

AR77471

REMAN-WATER PUMP

PUMP - water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

550 Long Track

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

550 Long Track, Replaces P/N A77471, AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water (Order A77471)

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77471)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1) -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J911922

SUPPORT ASSY.

BRACKET ASSEMBLY - fan pulley

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 40 mm, 8.8

4шт.

12

J914459

PULLEY

- fan

1шт.

15

J904549

BRACKET

- belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head slotted, 8 x 25 mm

2шт.

18

J918944

BELT TENSIONER

TENSIONER ASSEMBLY - belt (replaces J914086)

1шт.

A77817

KIT

KIT pulley, replacement

1шт.

Replacement for the pulley portion of the P/N J918944

1шт.

22

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- hex flange, 10 - 1.5 x 70 mm

1шт.
