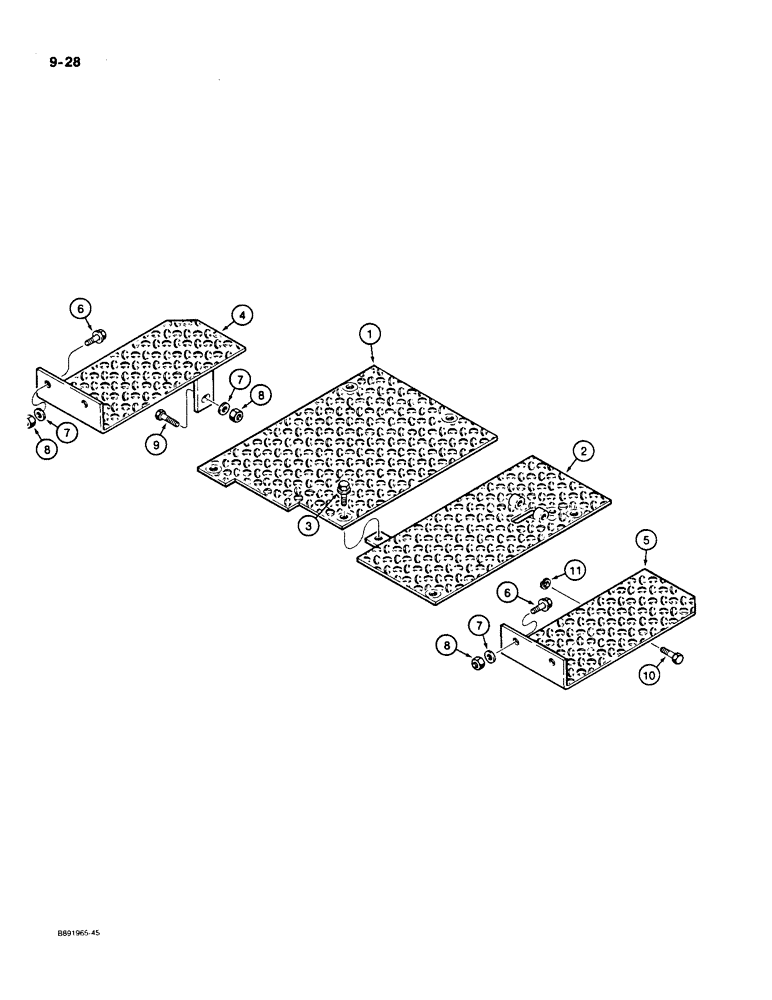

Запчасти Case 550 (9-28) - FLOOR AND STEP PLATES (09) - CHASSIS/ATTACHMENTS

1

R47426

LARGE PLATE

PLATE - floor, left-hand

1шт.

2

R47424

LARGE PLATE

PLATE - floor, right-hand

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

7шт.

4

R39879

LARGE PLATE

PLATE - step, left-hand

1шт.

5

R39880

LARGE PLATE

PLATE - step, right-hand

1шт.

6

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

7

R24718

WASHER

- flat, 1/2 inch, hardened

5шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used on LH step plate only Hex, 1/2"-13 x 1 3/4", G5

1шт.

10

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Used on RH step plate only

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on RH step plate only 1/2"

1шт.
