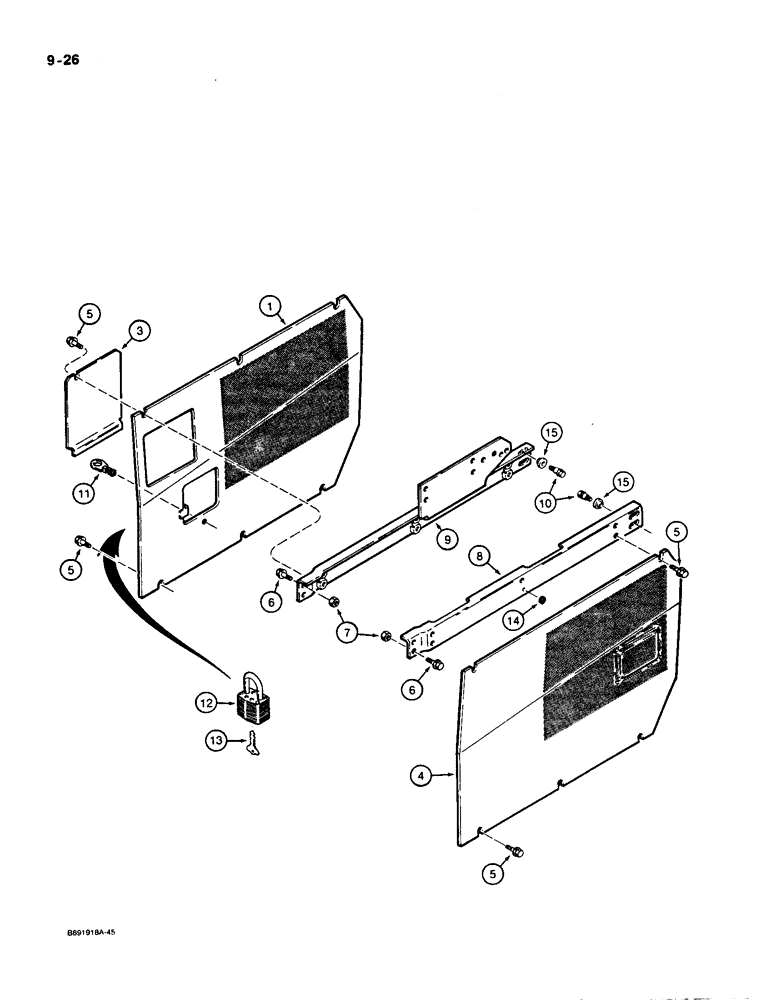

Запчасти Case 550 (9-26) - SIDE SHIELDS (09) - CHASSIS/ATTACHMENTS

1

R48058

PANEL

SHIELD - engine side, left-hand

1шт.

3

R48060

COVER

- left-hand side shield, air cleaner access

1шт.

4

R48061

PANEL

SHIELD - engine side, right-hand

1шт.

5

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

11шт.

6

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

7

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex, self-locking, 1/2 inch NC

4шт.

8

R51790

SUPPORT

- side shield, right-hand

1шт.

9

R53116

SUPPORT

- side shield, left-hand

1шт.

10

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch

4шт.

11

R42674

LOCKING DEVICE

FASTENER - access door

1шт.

12

D93753

PADLOCK

- access door, includes keys, Includes: Ref. 13

1шт.

13

R29555

KEY

- for Master padlock only

2шт.

13

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

14

A161780

BUMPER

- rubber, right-hand support only

1шт.

15

R54996

SPACER

- side shield supports, front mounting holes

4шт.
