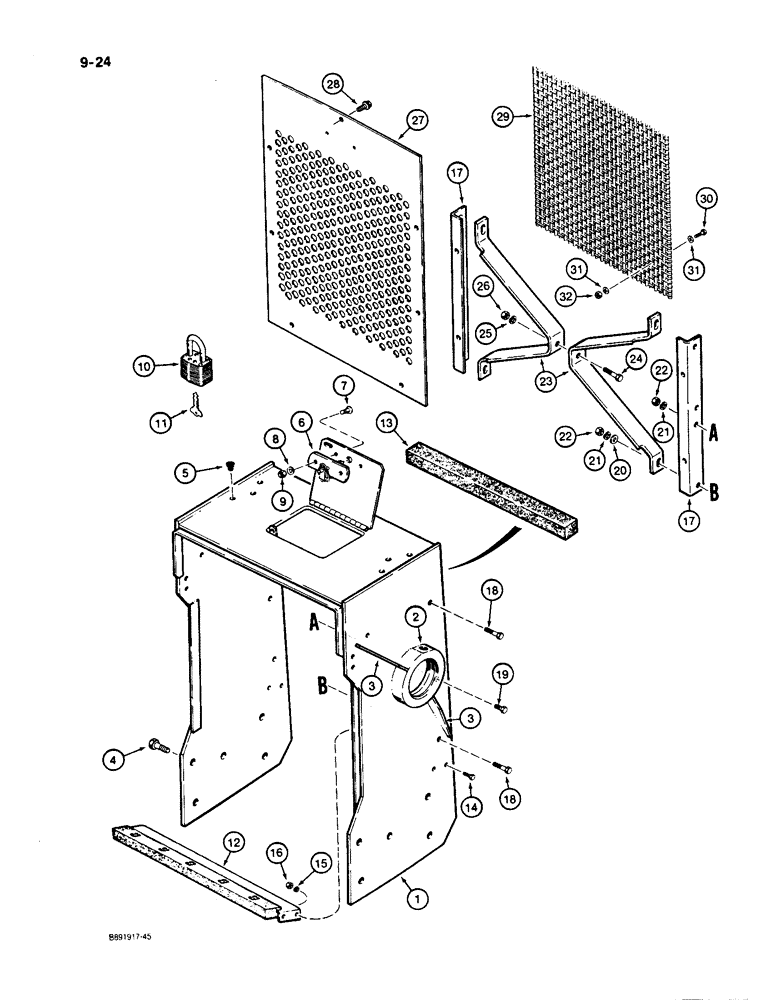

Запчасти Case 550 (9-24) - RADIATOR SHROUD, GRILLE, AND SCREEN (09) - CHASSIS/ATTACHMENTS

1

R50767

FRAME

SHROUD ASSEMBLY - radiator, includes decals, Includes: Ref. 2 and 3

1шт.

2

D31317

RACE

- lift trunnion

2шт.

3

R42367

GUSSET

- trunnion race

4шт.

4

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

10шт.

5

R38805

PLUG

- rubber, used on models without ROPS canopy

6шт.

6

L102515

LATCH

- radiator access door

1шт.

7

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

2шт.

10

D93753

PADLOCK

- radiator access door, includes keys, Includes: Ref. 11

1шт.

11

R29555

KEY

- for Master padlock only

2шт.

11

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

12

R51465

BRACKET

BAFFLE - radiator, lower, includes pad

1шт.

13

R46759

PROTECTION STRIP

PAD - radiator baffle, upper

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

R49206

SUPPORT

BRACKET - grille and brace mounting

2шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Upper and lower holes Hex, 1/2"-13 x 2", G5

4шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, center holes

2шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch, upper and lower holes

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

23

R49207

SUPPORT

BRACE - grille and shroud support

2шт.

24

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

129-107

NUT,5/8"-11, G5

1шт.

27

R47883

SIEVE

GRILLE - radiator

1шт.

28

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

7шт.

29

R49212

GRILLE ASSY

SCREEN - radiator, if used

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

10шт.

31

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8 inch

20шт.

32

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

10шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
