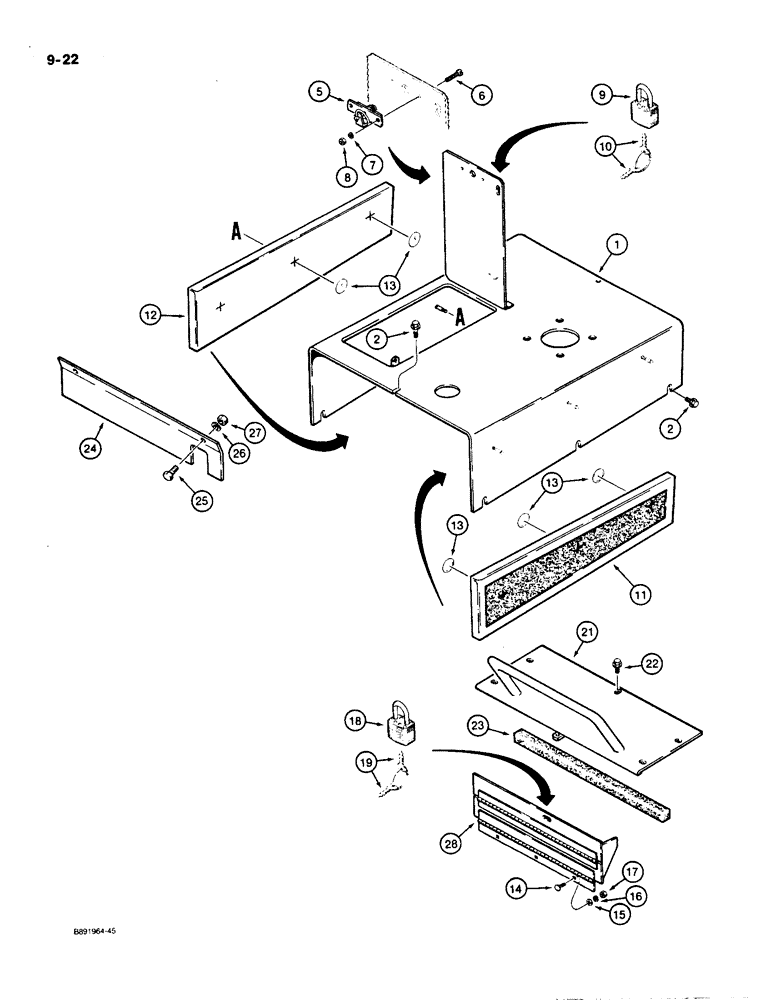

Запчасти Case 550 (9-22) - HOOD AND INSTRUMENT PANEL COVER (09) - CHASSIS/ATTACHMENTS

1

R46906

HOOD

- engine

1шт.

2

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

7шт.

5

L102515

LATCH

- air cleaner access

1шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

2шт.

9

D93753

PADLOCK

- air cleaner access, includes keys, Includes: Ref. 10

1шт.

10

R29555

KEY

- for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

11

R44353

NOISE PROTECTION

PAD - hood, noise reduction, vinyl covered, right-hand, if used

1шт.

12

R44352

NOISE PROTECTION

PAD - hood, noise reduction, vinyl covered, left-hand, if used

1шт.

13

R37160

RETAINER

- noise reduction pads, if used

5шт.

14

A42923

CARRIAGE BOLT

BOLT - carriage, special, 5/16 NC x 27/32 inch

3шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

18

D93753

PADLOCK

- instrument panel cover, includes keys, Includes: Ref. 19

1шт.

19

R29555

KEY

- for Master padlock only

2шт.

19

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

R50763

LARGE PLATE

PLATE - hood extension, with grab handle, includes decals

1шт.

22

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

5шт.

23

R40035

PAD

- 21-1/2 inch (546 mm) x 1 inch (25 mm) x 1 inch (25 mm) plate, cut from R30870, see below

1шт.

24

R40750

LARGE PLATE

PLATE - noise reduction, behind instrument panel, for pad see Figure 9-44, if used

1шт.

25

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

28

R50545

COVER

- instrument panel

1шт.

R30870

PAD

- 54 (1372) x 72 (1829) x 1 inch (25 mm), bulk

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
