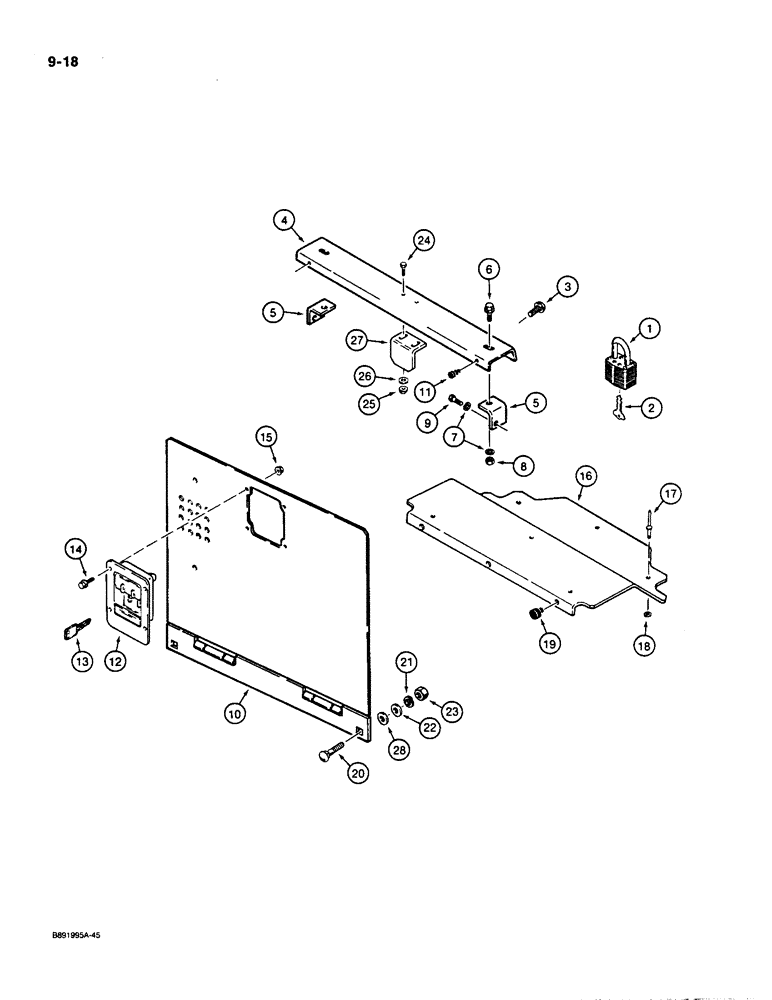

Запчасти Case 550 (9-18) - BATTERY COMPARTMENT AND REAR COVER, MODELS WITHOUT A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D93753

PADLOCK

- battery cover, includes keys, if used, Includes: Ref. 2

1шт.

2

R29555

KEY

- for Master padlock only

2шт.

2

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

4

R57059

COVER

BRACKET - cover mounting

1шт.

5

R48725

SUPPORT

ANGLE - bracket mounting

2шт.

6

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

R55502

COVER

- rear, hinged

1шт.

11

A161780

BUMPER

- cover mounting bracket (Ref. 4)

2шт.

12

R56221

LATCH

- rear cover

1шт.

13

R49215

KEY

- latch

1шт.

14

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4шт.

15

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

16

R51662

COVER

- battery, Includes: Ref. 17 - 19

1шт.

17

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 x 17/32 inch

6шт.

18

195-511

WASHER,#10

- flat, 13/64 x 15/32 x 3/16 inch

6шт.

19

F22426

STOP

BUMPER - rubber

3шт.

20

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

25

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

26

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

27

R57058

SUPPORT

STRIKER - rear cover latch

1шт.

28

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

2шт.
