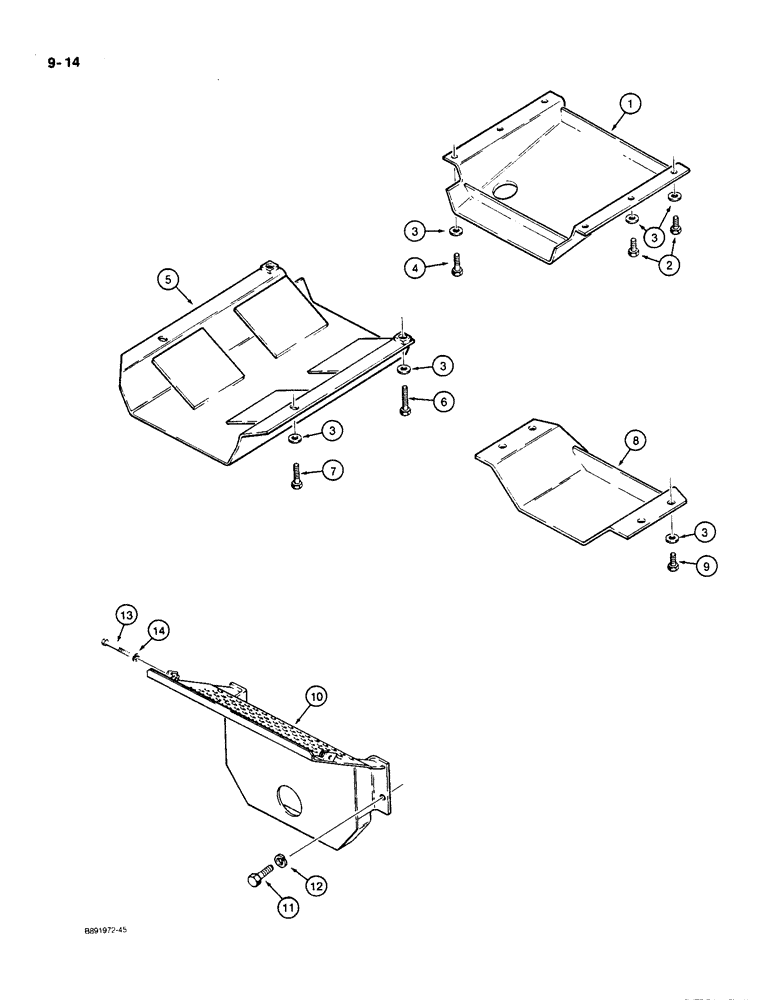

Запчасти Case 550 (9-14) - UNDERCARRIAGE GUARDS AND REAR TRANSMISSION GUARD (09) - CHASSIS/ATTACHMENTS

1

R46842

GUARD

- front, engine

1шт.

2

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- hex, 5/8 NC x 1-3/4 inch

4шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened, 5/8 inch

14шт.

4

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

5

D35162

GUARD

- center, torque converter and transmission

1шт.

6

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

8

R52242

GUARD

- rear, transmission

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- hex, 5/8 NC x 1-3/4 inch

4шт.

10

R47231

GUARD

- rear, transmission, upper, used on models with no rear equipment, if used

1шт.

11

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
