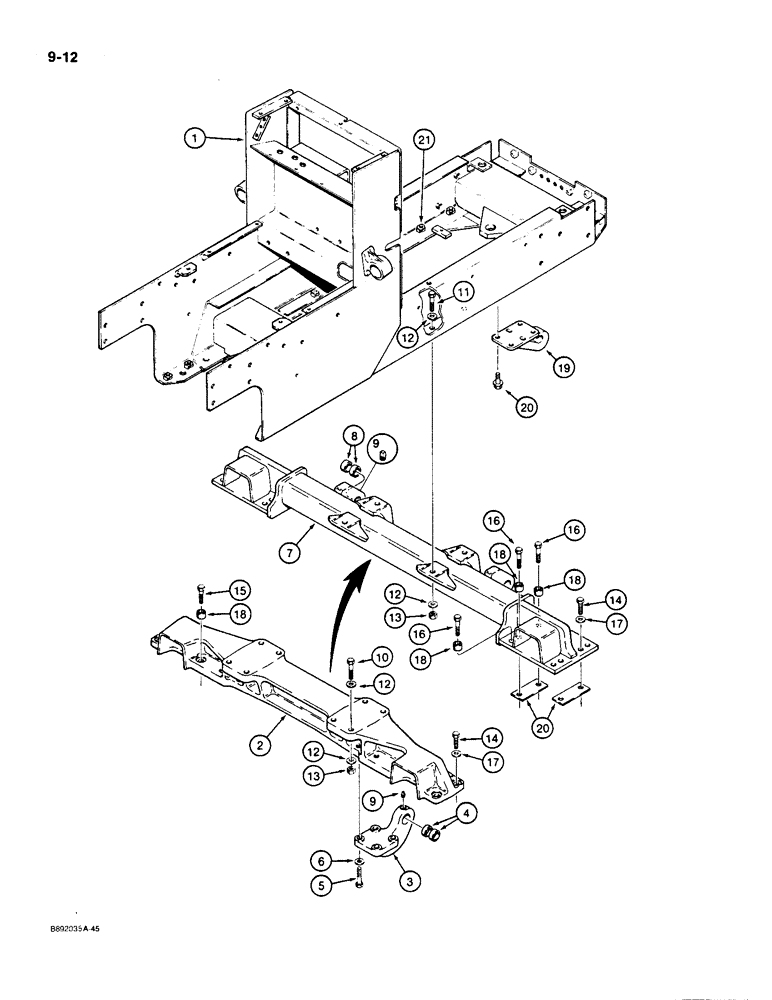

Запчасти Case 550 (9-12) - MAIN AND ENGINE FRAME (09) - CHASSIS/ATTACHMENTS

1

R57615

FRAME

- main and engine

1шт.

2

R47683

LARGE PLATE

CROSSMEMBER - front, 53 inch gauge long track models only

1шт.

3

R55861

BRACKET

- C-frame mounting, 53 inch gauge long track models only, Includes: Ref. 4

1шт.

4

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- bracket

2шт.

5

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch, grade 8, 53 inch gauge long track models only

8шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened, 53 inch gauge long track models only

8шт.

7

R54432

DRAWBAR

CROSSMEMBER - front, 64 inch gauge LGP models only, Includes: Ref. 8

1шт.

8

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- C-frame mounting lug

4шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8 inch taper PT, C-frame mounting lug

2шт.

10

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8, 53 inch gauge long track models only

4шт.

11

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, 64 inch gauge LGP models only

4шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

8шт.

13

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

14

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite 242, outer holes Hex, 3/4"-10 x 2", G8

4шт.

15

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch, grade 8, inner holes, 53 inch gauge long track models

4шт.

16

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, use with Loctite 242, inner holes, 64 inch gauge LGP models

6шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened, outer holes

4шт.

18

R30398

SPACER

- inner holes, four used on 53 inch gauge long track models; six used on 64 inch gauge LGP models

4-6шт.

19

R50469

HOOK

- pull, if used

1шт.

20

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8

6шт.

21

25-2810

SQUARE NUT

- cage, heavy, 5/8 inch NC, weld on, for undercarriage guards

14шт.
