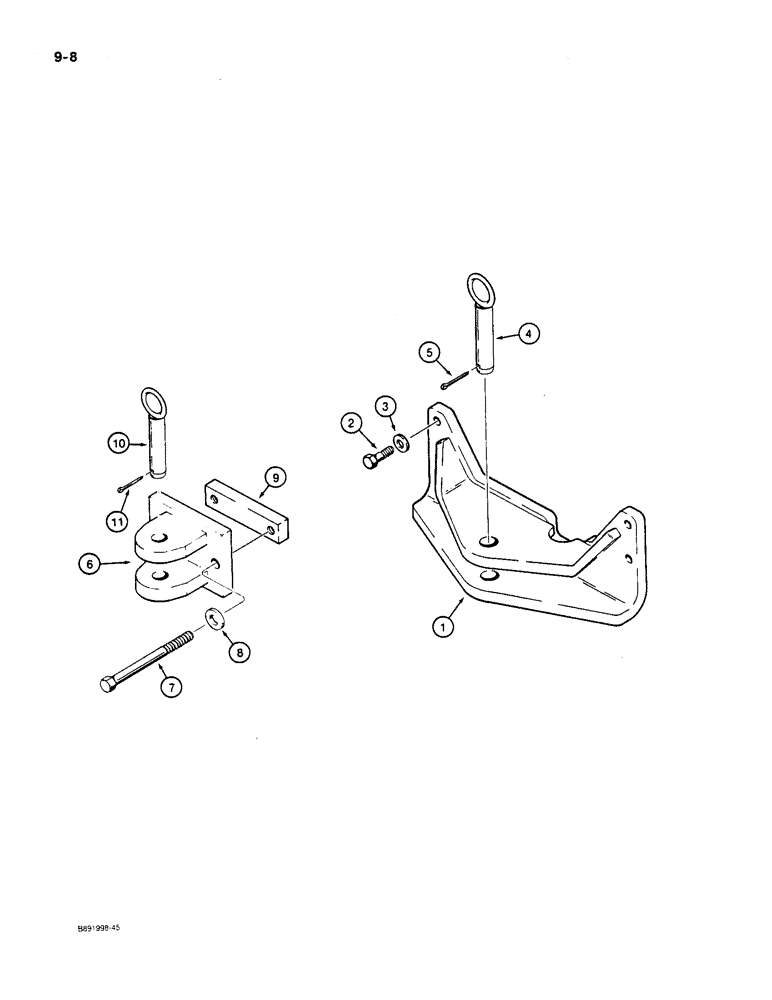

Запчасти Case 550 (9-08) - DRAWBARS (09) - CHASSIS/ATTACHMENTS

1

R47224

DRAWBAR

- used on models with no rear equipment, 64 inch gauge LGP models

1шт.

2

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

64 inch gauge LGP models with no rear equipment Hex, 3/4"-10 x 2", G8

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4 inch, 64 inch gauge LGP models with no rear equipment

4шт.

4

R24105

DRAWBAR

PIN - drawbar, 64 inch gauge LGP models with no rear equipment

1шт.

5

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , 64 inch gauge LGP models with no rear equipment 1/4" x 2"

1шт.

6

R39904

DRAWBAR

- used on models with no rear equipment, 53 inch gauge long track models

1шт.

7

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex, 3/4 NC x 4-1/2 inch, 53 inch gauge long track models with no rear equipment

2шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, 3/4 inch, 53 inch gauge long track models with no rear equipment

2шт.

9

R57040

LARGE PLATE

PLATE - tapped, 53 inch gauge long track models with no rear equipment

1шт.

10

R24105

DRAWBAR

PIN - drawbar, 53 inch gauge long track models with no rear equipment

1шт.

11

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , 53 inch gauge long track models with no rear equipment 1/4" x 2"

1шт.
