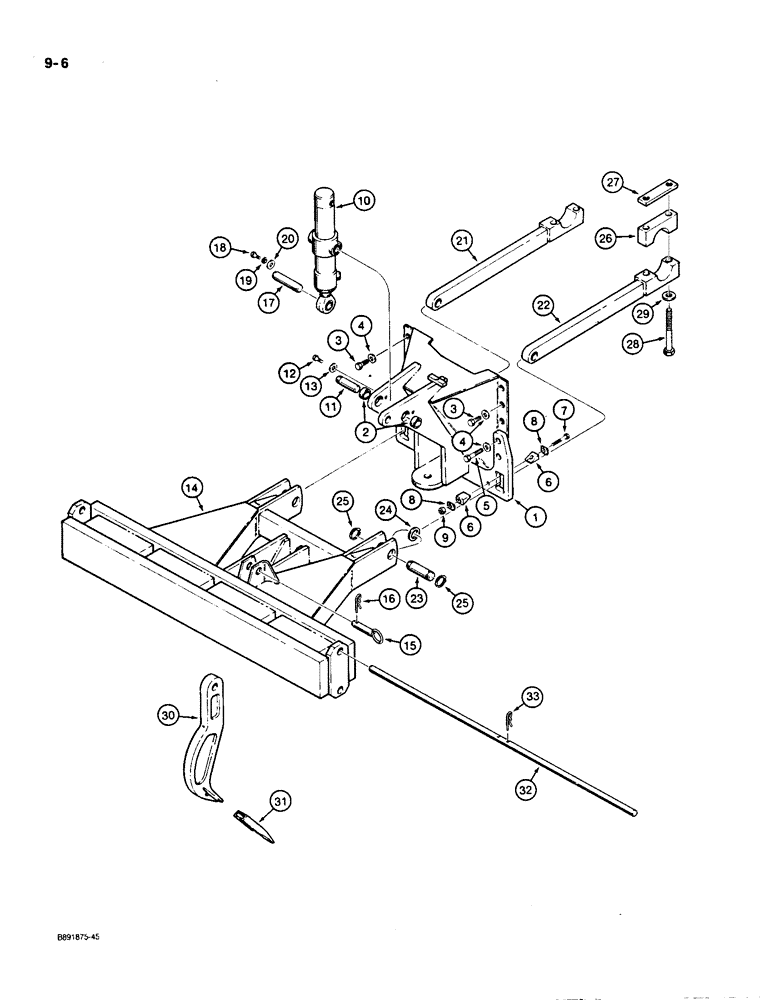

Запчасти Case 550 (9-06) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

R54403

LARGE PLATE

SUPPORT ASSEMBLY - ripper mounting, Includes: Ref. 2

1шт.

2

D32890

BUSHING

- cylinder mounting

2шт.

3

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

6шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

10шт.

5

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

6

D34678

BLOCK

- wedge

4шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

8

D34705

WASHER

- special, 1/2 inch

4шт.

9

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

10

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

ASSEMBLY - ripper, parts list Figure 8-28

1шт.

11

D34706

PIN,31.75mm OD x 60.33mm L

- cylinder to ripper support

2шт.

12

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

13

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

14

D35886

FRAME

- ripper

1шт.

15

D34715

PIN

- self-locking, ripper frame to ripper support

1шт.

16

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN - hair, internal type, 2 x 3-1/4 inch

1шт.

17

D36174

AXLE PIN,31.75mm OD x 123.83mm L

PIN - cylinder to ripper frame

1шт.

18

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

D25022

WASHER

- special

2шт.

21

R47375

ARM

- left-hand, ripper frame mounting

1шт.

22

R47376

ARM

- right-hand, ripper frame mounting

1шт.

23

D36614

PIN,38.1mm OD x 107.95mm L

- ripper frame to mounting arms

2шт.

24

R15389

SPACER

- pin

2шт.

25

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

26

D34663

CLAMP

- mounting arm to pivot shaft

2шт.

27

D34722

BLOCK

- tapped

2шт.

28

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex, 7/8 NC x 7-1/2 inch

4шт.

29

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

30

D35885

SHANK

- tooth, ripper

3шт.

31

R33815

POINT

TOOTH - ripper

3шт.

32

D35900

ROD

- attaching, ripper teeth

1шт.

33

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN - hair, internal type, 2 x 3-1/4 inch

2шт.
