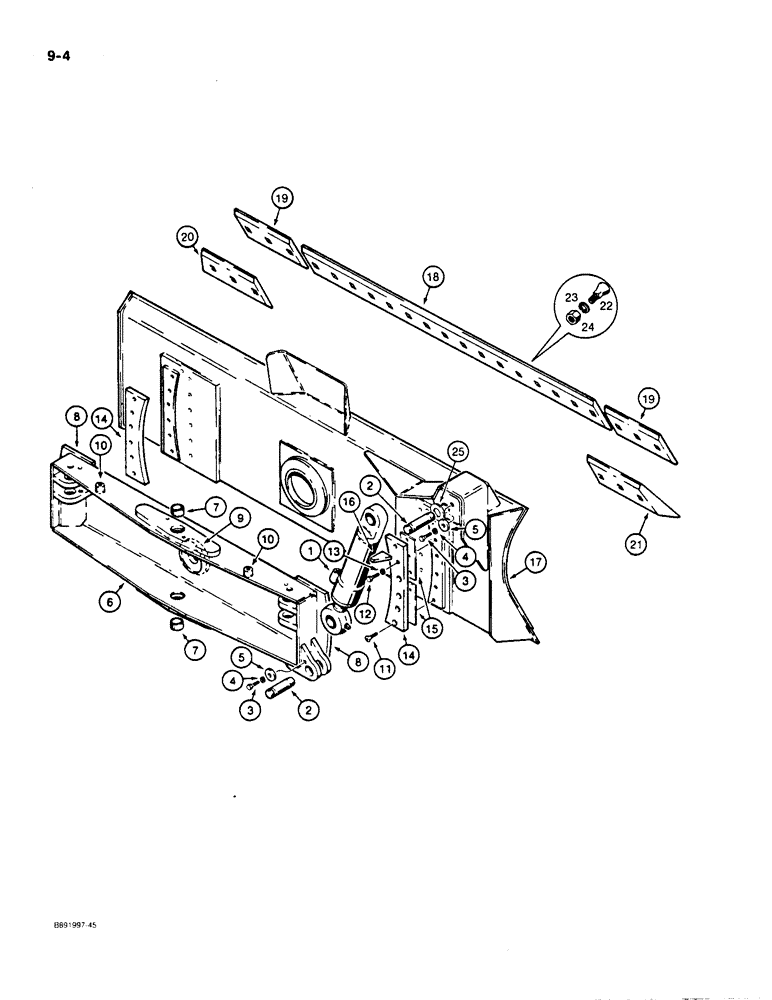

Запчасти Case 550 (9-04) - DOZER LEVELING BEAM, BLADE, AND TILT CYLINDER (09) - CHASSIS/ATTACHMENTS

1

G101228

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer tilt, parts list Figure 8-24

1шт.

2

D34796

PIN

- tilt cylinder mounting

2шт.

3

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special

2шт.

R56545

BEAM

ASSEMBLY - leveling, dozer blade, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

BEAM - leveling, dozer blade

1шт.

7

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- leveling beam

2шт.

8

R38789

LARGE PLATE

PLATE - rub

2шт.

9

D34869

LARGE PLATE

PLATE - swivel

1шт.

10

F43347

BLOCK

- tapped

2шт.

11

164-81

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 1 1/2"

BOLT - hex socket, 5/8 NC x 1-1/2 inch, grade 8

4шт.

12

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

D47764

PLATE ASSY.

PLATE - wear

2шт.

15

D47911

SHIM,.0359" Thk

Wear plate .0359" Thk

1шт.

16

D42402

GAUGE

- leveling, welds to tilt cylinder guard, see Figure 8-14

1шт.

17

R57027

HALF BLADE

BLADE - 96 inch (2438 mm) wide, used on 53 inch gauge long track models, not shown

1шт.

17

R43184

BUCKET

BLADE - 104 inch (2642 mm) wide, used on 64 inch LGP models

1шт.

18

R57023

EDGE

- cutting, center, used on 53 inch gauge long track models

1шт.

18

R43179

EDGE, CUTTING

EDGE - cutting, center, used on 64 inch gauge LGP models

1шт.

19

R29742

BLADE

EDGE - cutting, end, standard

2шт.

20

D43406

EDGE, CUTTING

EDGE - cutting, left-hand end, heavy duty

1шт.

21

D43407

EDGE, CUTTING

EDGE - cutting, right-hand end, heavy duty

1шт.

22

118-336

PLOW BOLT,1/2"-13 x 1 3/4", G8

BOLT - plow, 1/2 NC x 1-3/4 inch

22-26шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

22-26шт.

24

129-556

NUT,1/2"-13, G8

22-26шт.

25

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SHIM - tilt, Serial Range: cylinder-blade

1шт.

26

R48943

LARGE PLATE

swivel

1шт.

Ref. 26 and Ref.27 are weldments welded to back to back of blade in the center.

1шт.

27

D34855

RING

swivel

1шт.

Ref. 26 and Ref.27 are weldments welded to back to back of blade in the center.

1шт.
