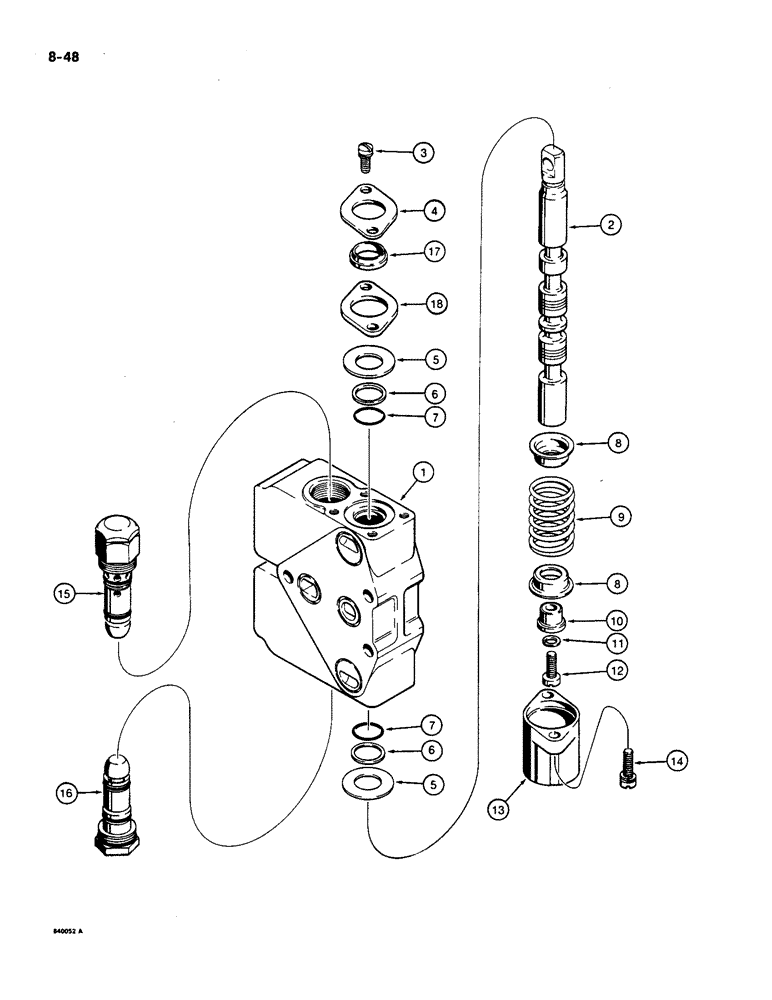

Запчасти Case 550 (8-48) - AUXILIARY SECTIONS (08) - HYDRAULICS

N8943

VALVE

SECTION ASSEMBLY - ripper, Includes: Ref. 1 - 18

1шт.

N8969

VALVE BLOCK

SECTION ASSEMBLY - dozer blade tilt and angle, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

- Fillister head with lock washer, 1/4 NC x 5/8 inch

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

2шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING - backup, spool O-ring

2шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

2шт.

8

H267591

SPRING SEAT

SEAT - spring

2шт.

9

N8949

SPRING

- centering, spool

1шт.

10

H267609

REAR FENDER

COLLAR - spool

1шт.

11

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

- Fillister head, 5/16 NC x 3/4 inch

1шт.

13

H267583

FITTING

CAP - spool, lower

1шт.

14

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- Fillister head with lock washer, 1/4 NC x 7/8 inch

2шт.

15

N8950

VALVE

ASSEMBLY - circuit relief, spool eye end, ripper section, parts list Figure 8-52

1шт.

16

D87307

VALVE

ASSEMBLY - load check, two used in dozer tilt and angle sections, one used in ripper section, parts list Figure 8-50

1-2шт.

17

N7029

SCRAPER

WIPER - spool

1шт.

18

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.
