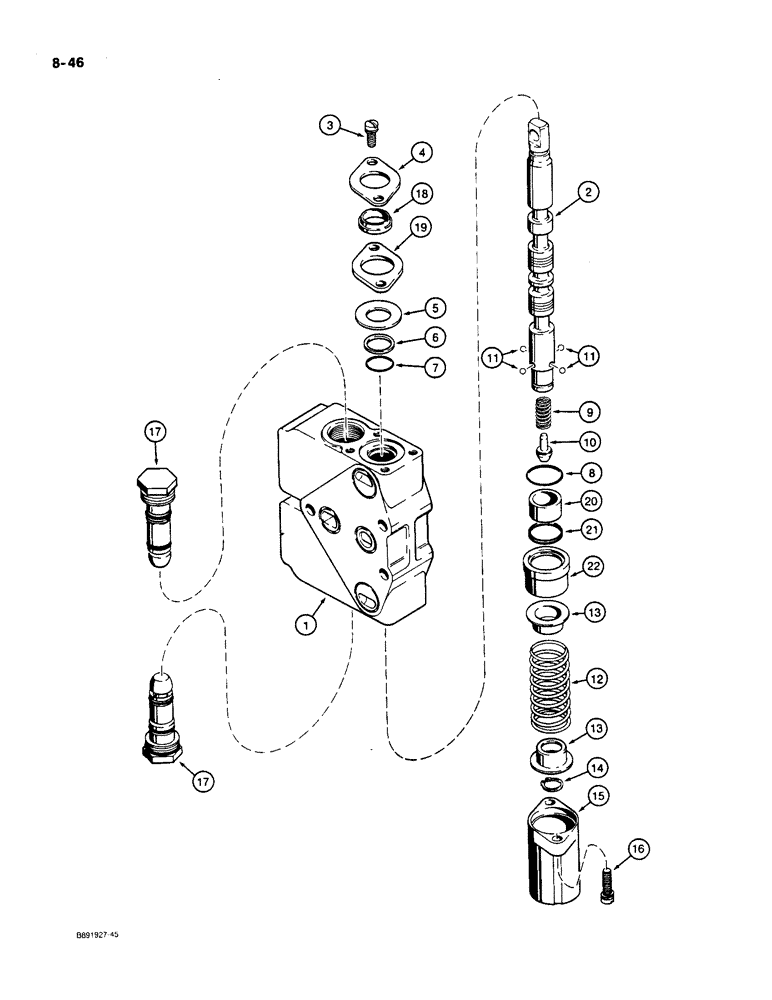

Запчасти Case 550 (8-46) - LIFT SECTION (08) - HYDRAULICS

N8970

VALVE BLOCK

SECTION ASSEMBLY - lift, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

- Fillister head with lock washer, 1/4 NC x 5/8 inch

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

1шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING - backup, spool O-ring

1шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

1шт.

8

343900R1

O-RING,1.051" ID x 0.07" Width

- detent sleeve

1шт.

9

N8967

SPRING

- detent

1шт.

10

N7035

VALVE POPPET

POPPET - detent

1шт.

11

211-6

BALL,7/32" Dia

steel 7/32" Dia

4шт.

12

N8966

SPRING

- centering, spool

1шт.

13

N7033

SEAT

- spring

2шт.

14

NLS

NO LONGER SERVICED

Ring, Snap, #62, Ext, spool

1шт.

15

N7031

COVER

CAP - spool detent

1шт.

16

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- Fillister head with lock washer, 1/4 NC x 7/8 inch

2шт.

17

D87307

VALVE

ASSEMBLY - load check, parts list Figure 8-50

2шт.

18

N7029

SCRAPER

WIPER - spool

1шт.

19

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.

20

N14700

COVER

SLEEVE - spool, .996 inch (25 mm) OD x .58 inch (15 mm) long

1шт.

21

N14699

SEAL

SEAL - spool sleeve, lip seal

1шт.

22

N14701

SLEEVE VALVE

SLEEVE - detent

1шт.
