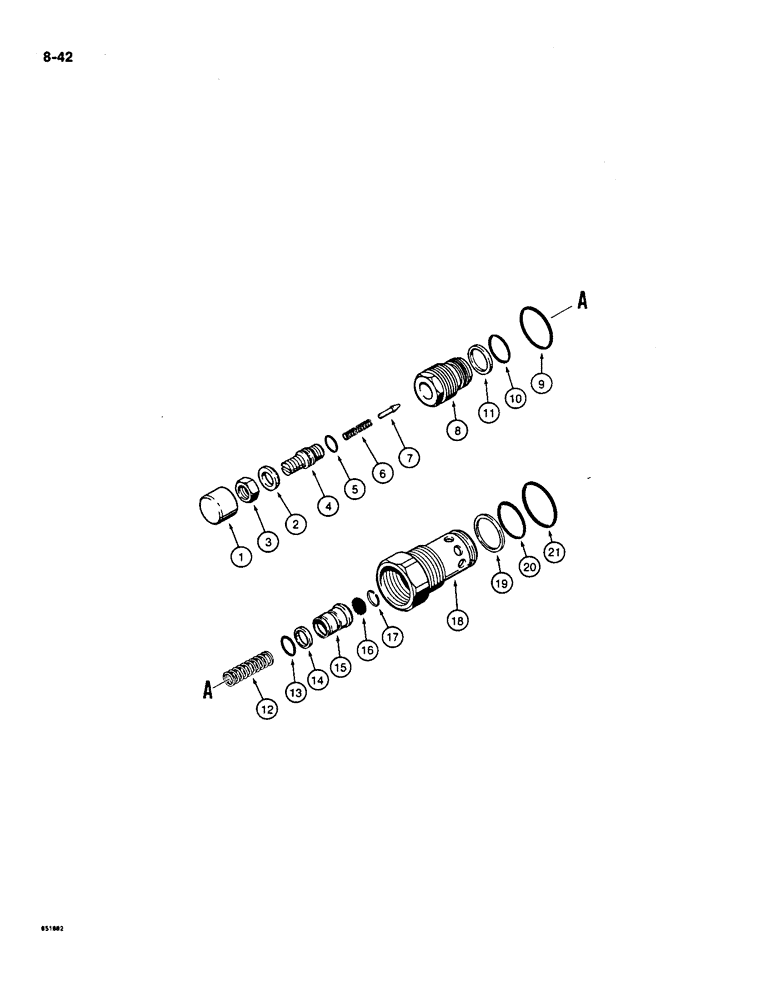

Запчасти Case 550 (8-42) - MAIN RELIEF VALVE, *USED ON MODELS WITHOUT A BACKHOE (08) - HYDRAULICS

N8191

VALVE

ASSEMBLY - main relief, used on models without a backhoe, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof

1шт.

2

N9475

WASHER

- special

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8 inch NF

1шт.

4

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

5

355967R1

O-RING,0.364" ID x 0.003" Width

- adjustment screw

1шт.

6

N9465

SPRING

- plunger

1шт.

7

N9464

PLUNGER

- relief valve

1шт.

8

N9769

BODY

- pilot plunger

1шт.

9

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- pilot body, large

1шт.

10

A55911

O-RING,0.807" ID

- pilot body, small

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING - backup, small O-ring

1шт.

12

N9770

SPRING

- poppet

1шт.

13

A64436

O-RING,0.549" ID x 0.755" OD

- poppet

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, poppet O-ring

1шт.

15

N9466

VALVE POPPET

POPPET - relief valve

1шт.

16

N9474

VALVE POPPET

SCREEN - poppet

1шт.

17

N9473

RING, SNAP

RING - retaining, screen

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

RING - backup, small O-ring, valve body

1шт.

20

D39718

O-RING,0.989" ID x 1.129" OD

- small, valve body

1шт.

21

343900R1

O-RING,1.051" ID x 0.07" Width

- large, valve body

1шт.
