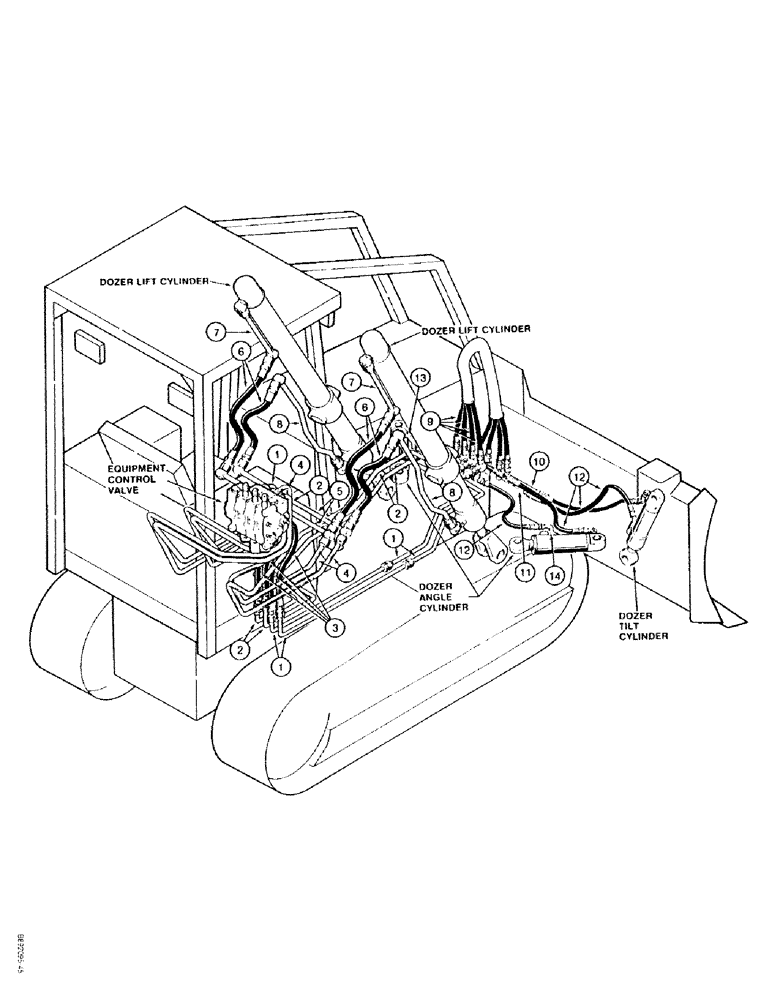

Запчасти Case 550 (1-10) - PICTORIAL INDEX, DOZER LIFT, TILT AND ANGLE HYDRAULIC CIRUITS (00) - PICTORIAL INDEX

1

Tilt Tubes from Control Valve to Grille, Figure 8-12

1шт.

2

Angle Tubes from Control Valve to Grille, Figure 8-12

1шт.

3

Intermediate Tilt and Angle Hoses, Figure 8-12

1шт.

4

Lift Tubes from Control Valve, Figure 8-10

1шт.

5

Crossover Tubes to Lift Cylinders, Figure 8-10

1шт.

6

Hoses to Lift Cylinders, Figure 8-10

1шт.

7

Tube to Closed End of Lift Cylindes, Figure 8-10

1шт.

8

Tube to Rod End of Lift Cylinders, Figure 8-10

1шт.

9

Tilt and Angle Hoses from Grille to Blade, Figure 8-14

1шт.

10

Tube to Rod End of Tilt Cylinder, Figure 8-14

1шт.

11

Tube to Closed End of Tilt Cylinder, Figure 8-14

1шт.

12

Hoses to Tilt and Angle Cylinders, Figure 8-14

1шт.

13

Tube to Rod end of Left-Hand Angle Cylinder, Figure 8-14

1шт.

14

Tube to Rod End of Right-Hand Angle Cylinder, Figure 8-14

1шт.
