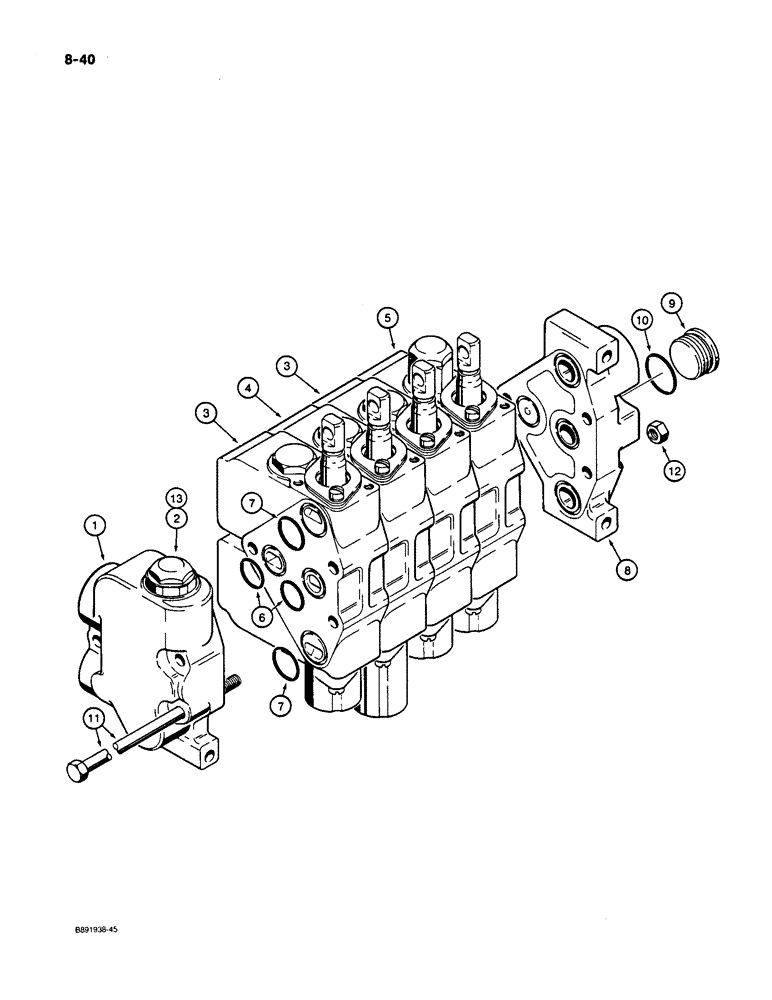

Запчасти Case 550 (8-40) - FOUR SPOOL CONTROL VALVE, ANGLE TILT DOZER WITH RIPPER (08) - HYDRAULICS

R47438

VALVE

ASSEMBLY - equipment control, four spool, Includes: Ref. 1 - 12

1шт.

The control valve assembly part number is stamped on the inlet-outlet section.

1шт.

1

N8942

VALVE BLOCK

SECTION - inlet-outlet

1шт.

2

N8191

VALVE

ASSEMBLY - main relief, used on dozer models without a backhoe, parts list Figure 8-42

1шт.

3

N8969

VALVE BLOCK

SECTION ASSEMBLY - dozer angle and tilt, parts list Figure 8-48

2шт.

4

N8970

VALVE BLOCK

SECTION ASSEMBLY - dozer lift, parts list Figure 8-46

1шт.

5

N8943

VALVE

SECTION ASSEMBLY - ripper, parts list Figure 8-48

1шт.

6

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- between sections, 13/16 inch (21 mm) ID

10шт.

7

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16 inch (24 mm) ID

10шт.

8

N8946

COVER

ASSEMBLY - end, Includes: Ref. 9 and 10

1шт.

9

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 10

1шт.

10

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 inch wide

1шт.

11

113-365

BOLT,Hex, 3/8" - 16 x 9-3/4", Gr 5

- tie, hex, 3/8 NC x 9-3/4 inch

3шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

13

R50181

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, used on dozer models with a backhoe, not shown, parts list Figure 8-44

1шт.

S302092

SEAL KIT

KIT, contains seals to do one section only

1шт.

The kit contains the old style .070 cross section seals as well as the new .103 cross section seals built from April 91.

1шт.
