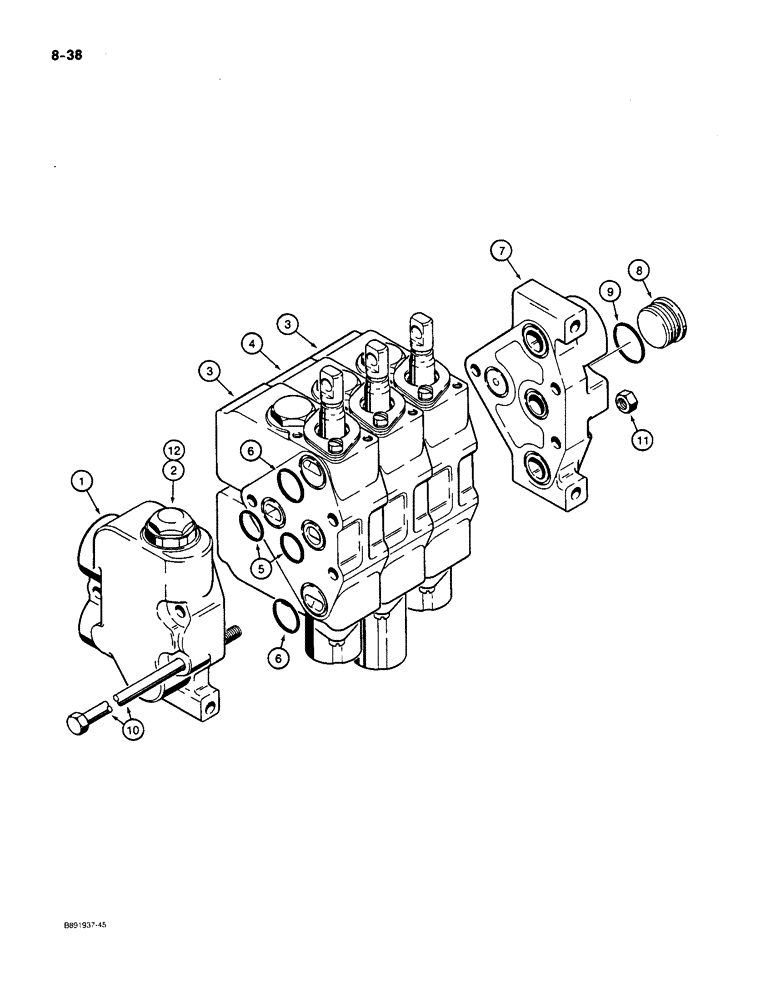

Запчасти Case 550 (8-38) - THREE SPOOL CONTROL VALVE, ANGLE TILT DOZER MODELS (08) - HYDRAULICS

R47437

VALVE

ASSEMBLY - equipment control, three spool, Includes: Ref. 1 - 11

1шт.

The control valve assembly part number is stamped on the inlet-outlet section.

1шт.

1

N8942

VALVE BLOCK

SECTION - inlet-outlet

1шт.

2

N8191

VALVE

ASSEMBLY - main relief, used on dozer models without a backhoe, parts list Figure 8-42

1шт.

3

N8969

VALVE BLOCK

SECTION ASSEMBLY - dozer tilt and angle, parts list Figure 8-48

2шт.

4

N8970

VALVE BLOCK

SECTION ASSEMBLY - dozer lift, parts list Figure 8-46

1шт.

5

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- between sections, 13/16 inch (21 mm) ID

8шт.

6

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16 inch (24 mm) ID

8шт.

7

N8946

COVER

ASSEMBLY - end, Includes: Ref. 8 and 9

1шт.

8

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 9

1шт.

9

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 inch wide

1шт.

10

113-2214

BOLT,Hex, 3/8" - 16 x 8", Gr 5

- tie, hex, 3/8 NC x 8 inch

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

R50181

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, used on dozer models with a backhoe only, not shown, parts list Figure 8-44

1шт.

S302092

SEAL KIT

KIT, contains seals to do one section only.

1шт.

The kit contains the old style .070 cross section seals as well as the new .103 cross section seals built from April 91.

1шт.
