Запчасти Case 550 (8-28) - RIPPER CYLINDER (08) - HYDRAULICS

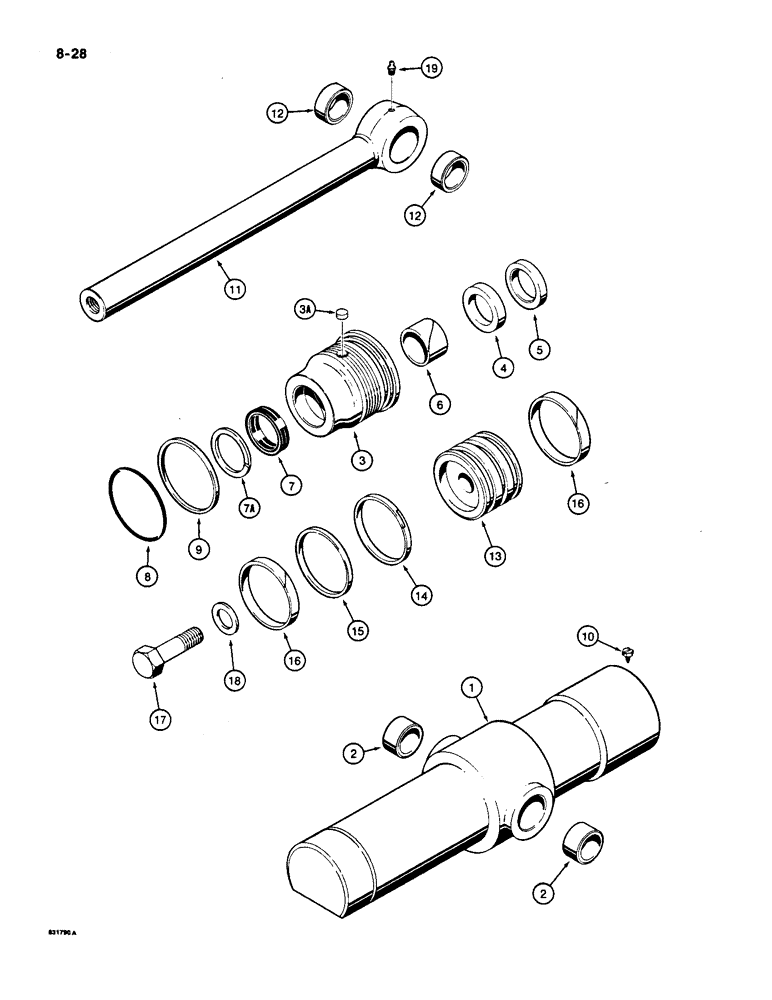

Схема запчастей Case 550 - (8-28) - RIPPER CYLINDER (08) - HYDRAULICS
12
4
16
7
1
9
6
3
14
19
2
18
5
15
3a
17
7a
16
2
13
8
10
12
11

Артикул

Название

Примечание

Количество

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

ASSEMBLY - 3 (76) ID x 10-1/2 inch (267 mm) stroke, ripper, Includes: Ref. 1 - 19

1шт.

1

D35123

TUBE

ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109452.

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G109452.

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109452.

1шт.

7

G100776

SEAL

- U- cup, piston rod, service option - severe heat or cold

1шт.

7a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, piston rod, narrow, grooved

1шт.

Part of seal kit P/N G109452.

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109452.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109452.

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 NC x 3/8 inch, if used

1шт.

11

G33467

ROD

ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

13

G100442

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G109452.

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G109452.

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G109452.

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

G109452

GASKET KIT

KIT - seal, includes Ref. 5 - 7 (P/N G107921), 7A - 9 and 14 - 16

1шт.

Выбрано товаров: 34
