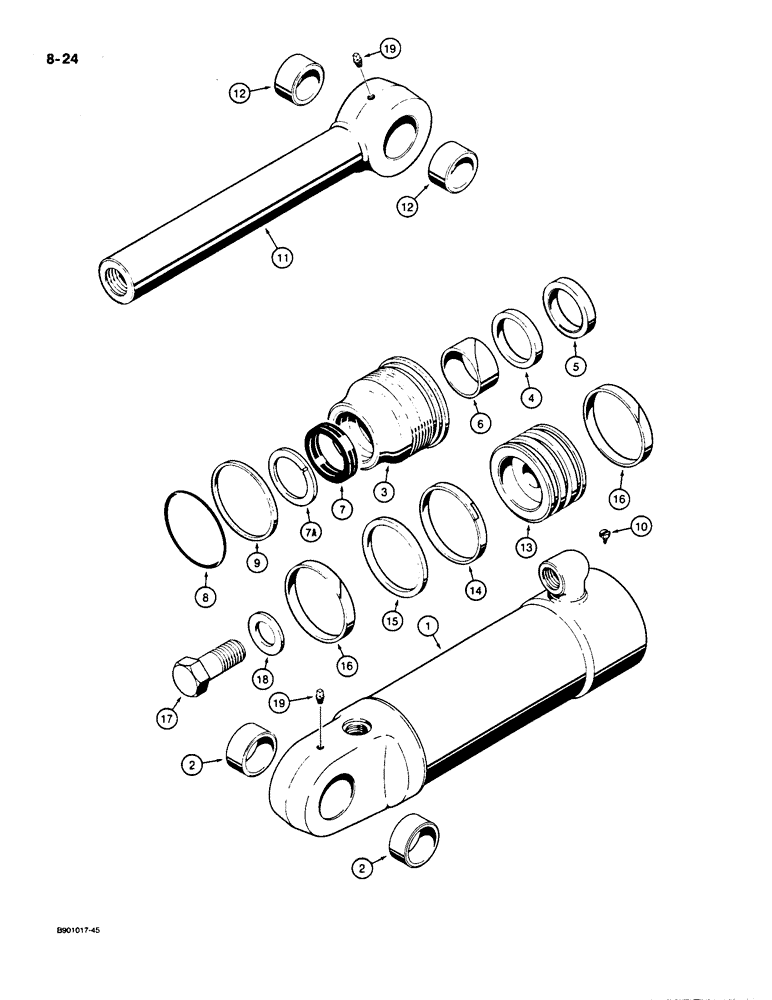

Запчасти Case 550 (8-24) - DOZER TILT CYLINDER (08) - HYDRAULICS

G101228

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 (89) ID x 8 inch (203 mm) stroke, dozer tilt, Includes: Ref. 1 - 16

1шт.

1

G34411

TUBE,16.93" L

ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

1978017C1

JACK HEAD

GLAND ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of seal kit P/N G109453.

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G109453.

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109453.

1шт.

7

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, piston rod, narrow, grooved

1шт.

Part of seal kit P/N G109453.

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109453.

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109453.

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 NC x 3/8 inch, if used

1шт.

11

G34409

ROD ASSY.

ROD ASSEMBLY - piston, 2 inch (51 mm) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G100694

PISTON

- cylinder

1шт.

14

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109453.

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109453.

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of seal kit P/N G109453.

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(super fine thread) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

221-849

PLUG,Hex Soc, 1/8"-27

- square, 1/8 inch taper PT

2шт.

G109453

GASKET KIT

KIT - seal, includes Ref. 5 - 7 (P/N G107923), 7A - 9 and 14 - 16

1шт.
