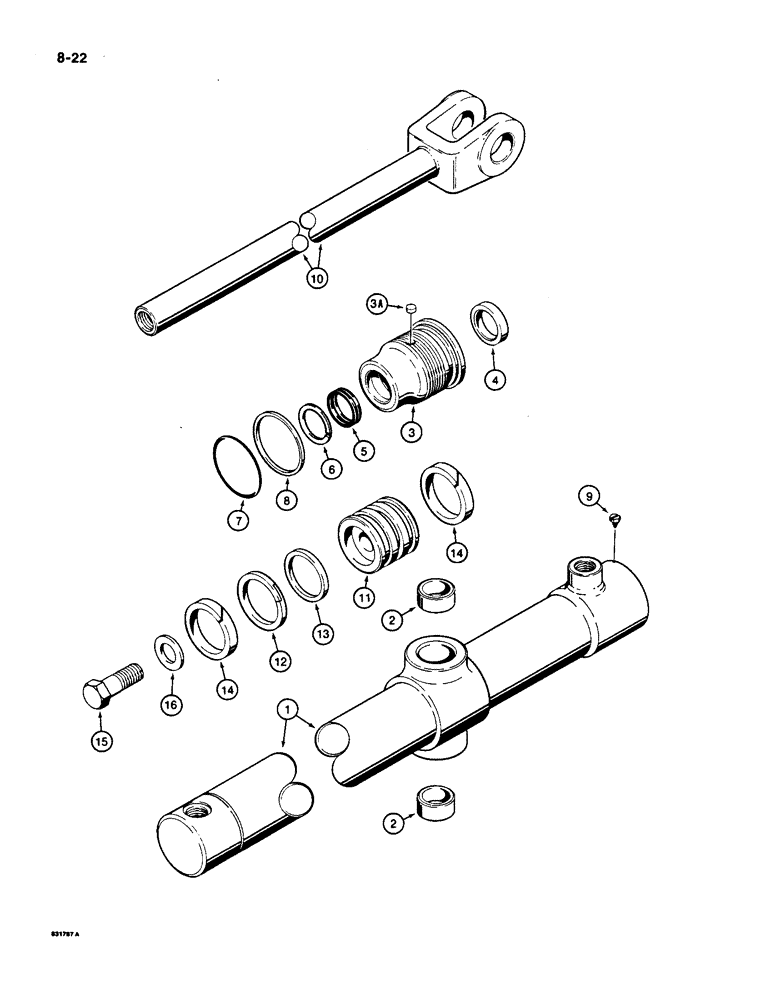

Запчасти Case 550 (8-22) - DOZER LIFT CYLINDERS (08) - HYDRAULICS

G101229

CYLINDER

ASSEMBLY - 2-1/2 inch (64 mm) ID x 28 inch (711 mm) stroke, dozer lift, Includes: Ref. 1 - 16

2шт.

1

G34346

CYLINDER ASSY.,2.5" ID x 35" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G104915

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N G109475.

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of seal kit P/N G109475.

1шт.

5

G100775

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

6

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, piston rod, narrow, grooved

1шт.

Part of seal kit P/N G109475.

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109475.

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109475.

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 NC x 3/8 inch, if used

1шт.

10

G34348

ROD

ASSEMBLY - piston, 1-1/4 inch (31 mm) diameter

1шт.

11

G100708

PISTON

- cylinder

1шт.

12

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109475.

1шт.

13

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G109475.

1шт.

14

G100714

RING

- wear

2шт.

Part of seal kit P/N G109475.

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G109475

GASKET KIT

KIT - seal, includes Ref. 4, 5 (P/N D36968), 6 - 8 and 12 - 14

1шт.
