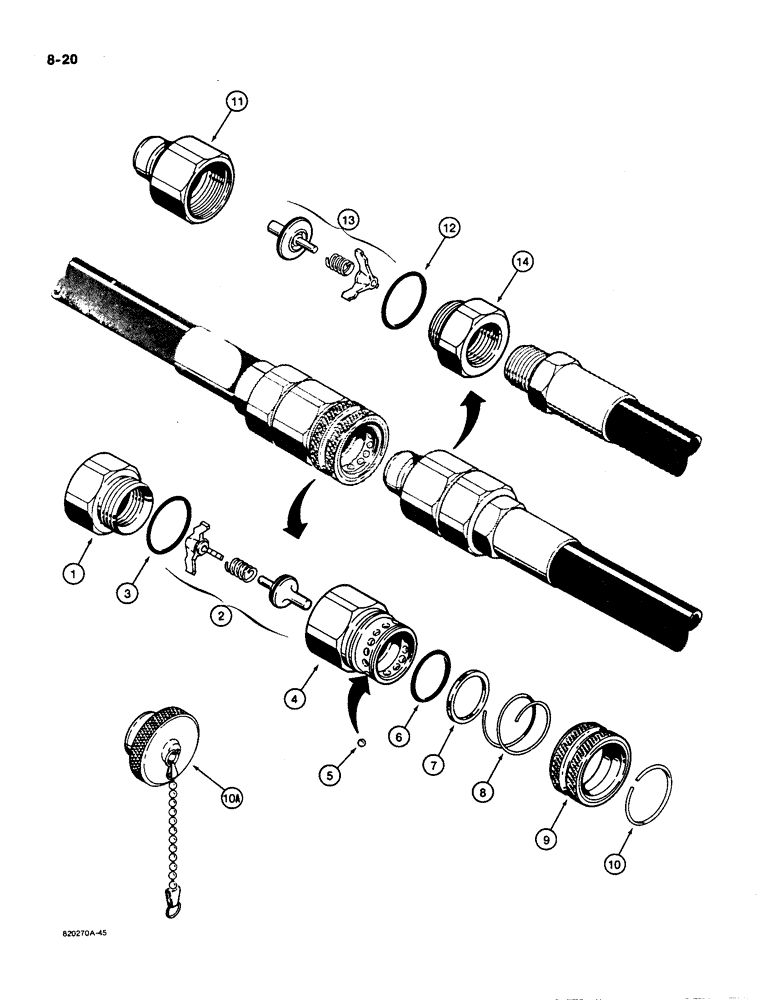

Запчасти Case 550 (8-20) - HYDRAULIC QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

D52800

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - quick disconnect, female, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

ADAPTER - coupling, female

1шт.

2

D53915

VALVE

ASSEMBLY - coupling, female

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling, female

1шт.

4

D53916

BODY

- coupling, female

1шт.

5

211-205

BALL

- 7/3 inch, grade 25, chrome alloy steel, female coupling

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

O-RING - body, coupling, female

1шт.

7

D54276

RING

- backup, O-ring, female coupling

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve, female coupling

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, female coupling

1шт.

10

D31981

RING

- retaining, spring, female coupling

1шт.

10a

D39924

PLUG

- dust, for female coupling

1шт.

D52694

QUICK MALE COUPLING

COUPLING ASSEMBLY - quick disconnect, male, Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

- coupling, male

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body, coupling, male

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, male

1шт.

14

D31975

FITTING

ADAPTER - coupling, male

1шт.
