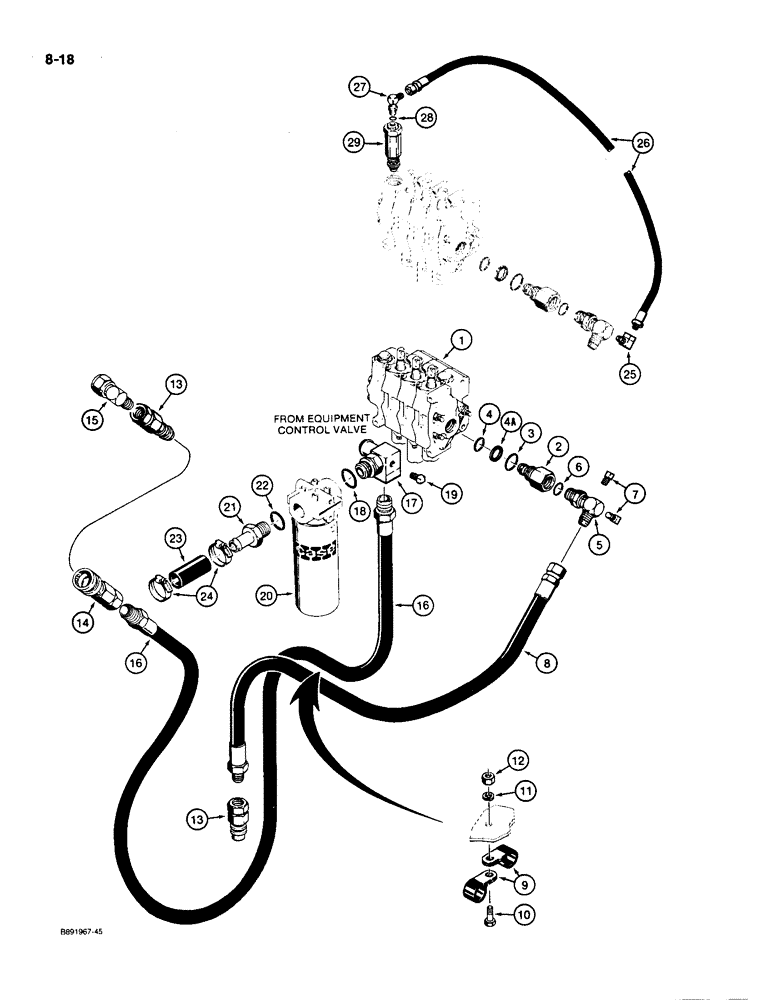

Запчасти Case 550 (8-18) - BACKHOE CONNECTING HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figures 8-38 - 8-40

1шт.

2

R48066

ADAPTER

- control valve, Includes: Ref. 3 - 4A

1шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 inch wide, large, outer

1шт.

4

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- small, inner

1шт.

4a

N13178

O-RING,0.69" ID x 0.055" Width

RING - backup, small O-ring

1шт.

5

D35472

FITTING

ELBOW - 90 degree, special, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

- square, 1/4 inch taper PT

2шт.

8

D52667

HOSE

- 36 inch (914 mm) long, supply

1шт.

9

D34033

CLAMP

- hoses

2шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

13

D52694

QUICK MALE COUPLING

COUPLING ASSEMBLY - quick disconnect, male, parts list Figure 8-20

2шт.

14

D52800

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - quick disconnect, female, parts list Figure 8-20

1шт.

15

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- 90 degree, swivel, 1-1/16-12 O-ring swivel x 3/4 inch PT, to tee at backhoe stabilizer control valve

1шт.

16

R43873

HOSE

- 72 inch long, return

1шт.

17

R47948

TEE

- at filter, special, Includes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

19

221-1849

PLUG

- hex socket, 1/8 inch taper PT

1шт.

20

R50518

FILTER

ASSEMBLY - equipment hydraulic oil, parts list Figure 6-44

1шт.

21

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Adapter, Includes Ref. 22 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

23

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

- return to hydraulic reservoir 25.40 mm ID x 133.40 mm ID, SAE 100R3

1шт.

24

214-190

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - hose, adjustable

2шт.

25

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

26

R50105

HOSE ASSY.

HOSE - 17 inch long

1шт.

27

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adj, 7/16-20 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

R50181

VALVE, PRESSURE RELI

VALVE - relief, dual stage, main relief valve section of equipment control valve, parts list Figure 8-44

1шт.
