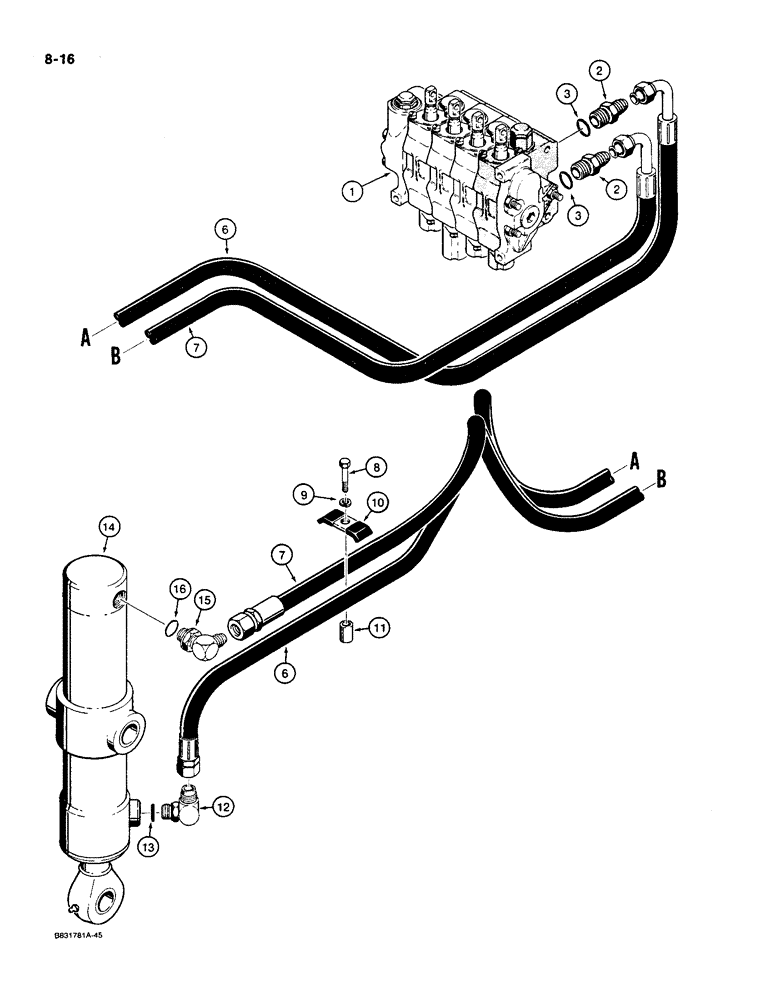

Запчасти Case 550 (8-16) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

R47438

VALVE

ASSEMBLY - equipment control, parts list Figure 8-40

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

R47442

HOSE

- 60 inch long, upper port to rod end of cylinder

1шт.

7

R50321

HOSE ASSY.

HOSE - 54 inch long, lower port to closed end of cylinder

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

R25782

CLAMP

- hose

1шт.

11

A19177

SPACER

- clamp

1шт.

12

R20839

FITTING

ELBOW - 90 degree, adjustable, restricted, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

ASSEMBLY - ripper, parts list Figure 8-28

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adj, 7/8-14 inch flare x O-ring boss, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
