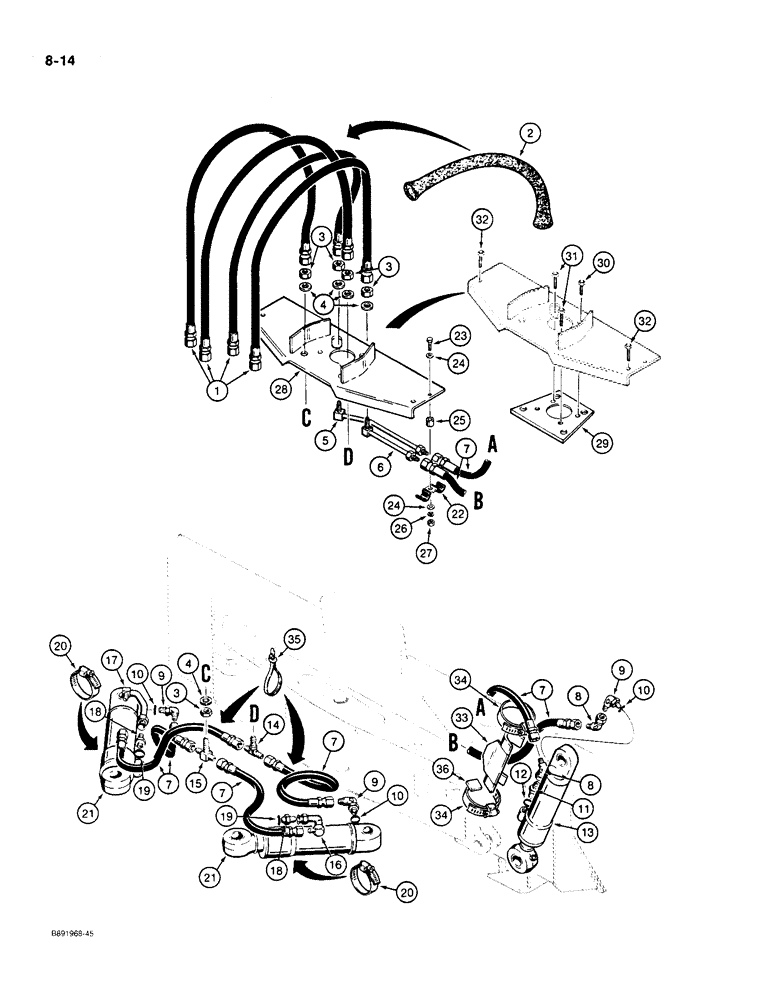

Запчасти Case 550 (8-14) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, ON BACK OF BLADE (08) - HYDRAULICS

1

R40023

HOSE,9.53mm ID x 1270mm L, SAE 100R2

- 50 inch long

4шт.

2

R52543

SLEEVE

- nylon, hose retaining

1шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

5шт.

4

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

5шт.

5

R41286

PIPE,0.5" OD x 15.4, 3.5" L

TUBE - tilt circuit, to rod end of tilt cylinder

1шт.

6

R41288

PIPE,0.5" OD x 9.4" L

TUBE - tilt circuit, to closed end of tilt cylinder

1шт.

7

R57608

HOSE ASSY.

HOSE - 21 inch long

6шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, swivel, 3/4-16 inch flare x swivel, tilt cylinder

2шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj, 3/4-16 flare x 7/8-14 inch O-ring boss, Includes: Ref. 10

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, rod end of tilt cylinder, Incl. Ref 12 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

G101228

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer tilt, parts list Figure 8-24

1шт.

14

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, 3/4-16 inch flare bulkhead branch x flare, right-hand, angle circuit

1шт.

15

R28969

FITTING

TEE - bulkhead, left-hand, angle circuit

1шт.

16

R52691

TUBE,0.5" OD

- to rod end of angle cylinder, right-hand

1шт.

17

R52689

TUBE,0.5" OD

- to rod end of angle cylinder, left-hand

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, rod end of angle cylinder, Incl. Ref 19 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - angle cylinder

2шт.

21

1978047C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer angle, parts list Figure 8-26

2шт.

22

R15257

CLAMP

- tilt circuit hoses

1шт.

23

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

25

D38524

SPACER

- clamp, tilt circuit hoses

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

28

R54467

GUARD

- hoses and tubes

1шт.

29

R54466

LARGE PLATE

PLATE - hose and tube mounting

1шт.

30

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Guard to plate Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

31

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Plate to leveling beam

2шт.

32

121-433

FLANGE BOLT,Hex, 1/2" - 13 x 2", Gr 8

BOLT - hex flange, 1/2 NC x 2 inch, grade 8, guard to leveling beam

2шт.

33

R41284

GUARD

- tilt cylinder

1шт.

34

214-181

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

CLAMP - adjustable, tilt cylinder guard

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

36

D42402

GAUGE

- leveling, weld to tilt cylinder guard, align with leveling beam

1шт.
